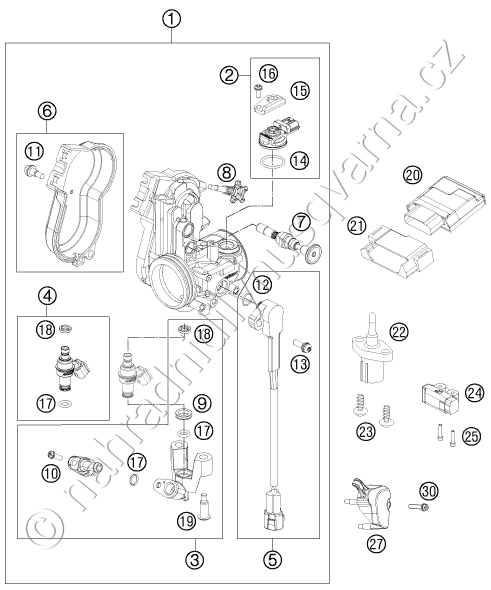

Díly pro THROTTLE BODY
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 77741001000 THROTTLE BODY |
12 322 Kč | |
| 2 | 75041085044 MAP SENSOR CPL. 07 |
3 332 Kč | |
| 3 | 77741013044 FUEL RAIL CPL. |
3 146 Kč | |
| 4 | 77741023044 INJECTOR KIT CPL. |
3 751 Kč | |
| 5 | 77741077044 TPS CPL. |
5 622 Kč | |
| 6 | 81241056044 THROTTLE COVER CPL. 09 |
977 Kč | |
| 7 | 77741070000 STARTER VALVE COMP. |
295 Kč | |
| 8 | 77741060044 IDLING ADJUSTING SCREW CPL. |
382 Kč | |
| 9 | 77741023030 SEAL RING |
424 Kč | |
| 10 | 75041013010 SCREW SHOULDER |
94 Kč | |
| 11 | 81241056020 SPECIAL SCREW AH |
129 Kč | |
| 12 | 61041077010 O-RING THROTTLE POS. SENSOR |
114 Kč | |
| 13 | 81241077030 SPECIAL SCREW |
63 Kč | |
| 14 | 75041085010 O-RING |
102 Kč | |
| 15 | 77741085020 PLATE |
126 Kč | |
| 16 | 81241085030 SPECIAL SCREW |
55 Kč | |
| 17 | 75041023020 O-RING |
132 Kč | |
| 18 | 75041023010 SEAL RING |
193 Kč | |
| 19 | 75041013060 SCREW SHOULDER |
102 Kč | |
| 20 | 81241031100 ELECTRONIC CONTROL UNIT |
8 693 Kč | |
| 21 | 77241035050 ECU SAFETY COVER |
159 Kč | |
| 22 | 61041080000 AMBIENT-AIR TEMPERATURE SENSOR |
364 Kč | |
| 23 | 0025050166 HH COLLAR SCREW M5X16 TX30 |
20 Kč | |
| 24 | 61041088000 ROLLOVER SENSOR 05 |
1 035 Kč | |
| 25 | 0025060206 HH COLLAR SCREW M6X20 TX30 |
29 Kč | |
| 27 | 77741077050 PROTECTION CAP TPS |
89 Kč | |
| 30 | 0025050256 HH COLLAR SCREW M5X25 ISA30 |
20 Kč |
