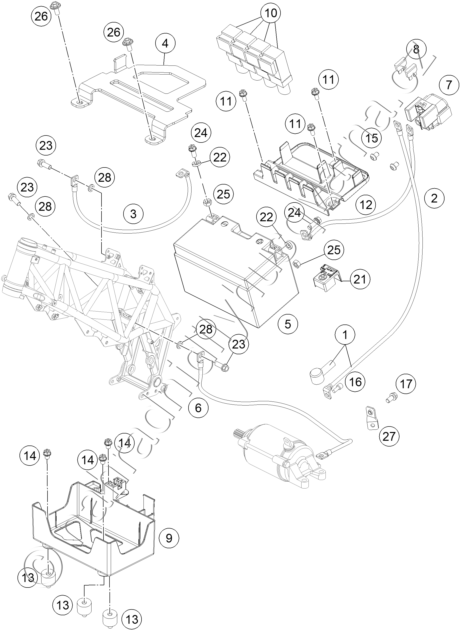

Díly pro BATTERY
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 76511059000 STARTER-CABLE L=570MM 08 |
286 Kč | |
| 2 | 75011059150 BATTERY-CABLE L=170MM |
212 Kč | |
| 3 | 76511097000 GROUND CABLE L=420MM 08 |
249 Kč | |
| 4 | 27011056044 RETAINING BRACKET |
510 Kč | |
| 5 | 58411053100 BATTERY 12V 8,6AH 03 |
3 472 Kč | |
| 7 | 58211058000 STARTER RELAY 12V \'99 |
1 294 Kč | |
| 8 | 58011109125 FUSE 25 A |
63 Kč | |
| 8 | 58011109130 FUSE 30 A |
63 Kč | |
| 9 | 76511054100 BATTERY BRACKET |
132 Kč | |
| 10 | 61111057000 RELAY CM1A-R-12V-H80 07 |
257 Kč | |
| 11 | 0025050126 HH COLLAR SCREW M5X12 TX30 |
36 Kč | |
| 12 | 76511055000 HOLDER F.ELECTRIC 08 |
60 Kč | |
| 13 | 43205062100 SILENTBLOC 20X15-M6X10-(1) |
106 Kč | |
| 14 | 0024060106 HH COLLAR SCREW M6X10 TX30 |
29 Kč | |
| 15 | 0902060083 AH OVAL SCREW ISO 7380 M 6X8 |
23 Kč | |
| 16 | 0912050083 SHCS DIN 912 M5X8 |
17 Kč | |
| 17 | 0025050106 HH COLLAR SCREW M5X10 TX30 |
20 Kč | |
| 21 | 62111059060 COVER POSITIVE POLE |
57 Kč | |
| 22 | 12011016000 WASHER 6 X 12 X 3 |
20 Kč | |
| 23 | 0025060126 HH COLLAR SCREW M6X12 TX30 |
29 Kč | |
| 24 | 0025060166 HH COLLAR SCREW M6X16 TX30 |
28 Kč | |
| 25 | 0934060003 HEX NUT DIN 934 M6 |
17 Kč | |
| 26 | 0024060136 HH COLLAR SCREW M6X13 TX30 |
29 Kč | |
| 27 | 76511059061 RETAINING PLATE STARTER CABLE |
185 Kč | |
| 28 | 58411098100 CONTACT WASHER M6 VSV-K6 |
23 Kč |
