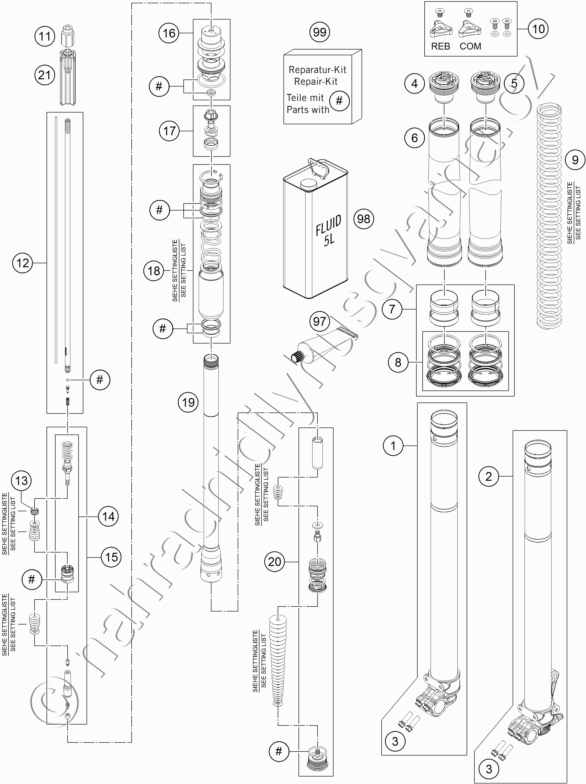

Díly pro FRONT FORK DISASSEMBLED
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 48601530S1 AXLE CLAMP L/S WITH INNER TUBE |
11 457 Kč | |
| 2 | 48601531S1 AXLE CLAMP R/S WITH INNER TUBE |
11 457 Kč | |
| 3 | 0025080256 HH COLLAR SCREW M8X25 TX40 |
33 Kč | |
| 4 | 48601050E SCREW CAP M51X1,5 REB. KPL. |
1 315 Kč | |
| 5 | 48601116E SCREW CAP M51X1,5 CPL. |
1 315 Kč | |
| 6 | 48600736 OUTER TUBE L577 D54/60MM 2L |
8 770 Kč | |
| 7 | R14063 FORK REP. KIT 48MM OFFROAD |
1 960 Kč | |
| 8 | R14040 GASKET KIT CPL. |
1 764 Kč | |
| 9 | 91410106S SPRING 5,2N/MM SET |
3 138 Kč | |
| 10 | R14033 SCREW CAP SMALL PART KIT |
395 Kč | |
| 11 | 48601034 COUNTERNUT M8 |
89 Kč | |
| 12 | 48601343S PISTON ROD CPL. |
2 410 Kč | |
| 13 | 48600382 SHUTTLE VALVE SPRING C=0,4 |
52 Kč | |
| 14 | R14056 TAP KIT |
753 Kč | |
| 15 | 48601390S3 ADAPTER D20 COMPR. CPL. |
1 306 Kč | |
| 16 | R14035 SCREW SLEEVE KIT |
753 Kč | |
| 17 | 48601025S1 CHECK VALVE D21 CPL. |
751 Kč | |
| 18 | 48601315S4 PRESSURE TANK CPL. |
1 096 Kč | |
| 19 | 48601542S TUBE L382 + ADAPTER |
2 287 Kč | |
| 20 | 48601247S2 SCREW CAP CPL. |
1 073 Kč | |
| 21 | 48601552 SPRING GUIDE D23 |
126 Kč | |
| 97 | T14034 FUCHS GREASE IPR (250G) |
1 280 Kč | |
| 98 | 48601166S1 FORK OIL SAE4 5L |
2 949 Kč | |
| 99 | R24002 O-RING SET 4CS |
815 Kč |
