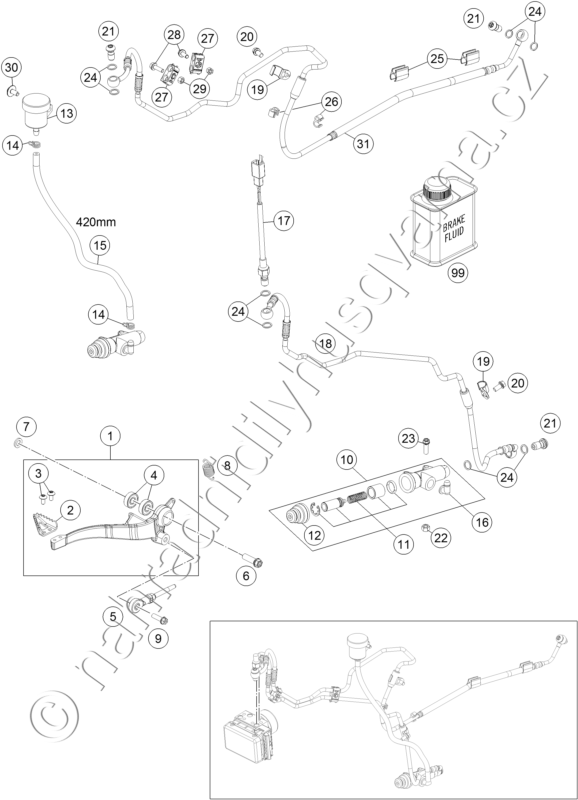

Díly pro REAR BRAKE CONTROL
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 7651305024401 FOOT BRAKE LEVER CPL. 11 |
2 024 Kč | |
| 2 | 60013051000 STEP PLATE FOOT BRAKE LEVER 03 |
73 Kč | |
| 3 | 58605083010 SCREW TORX M5X10 05 |
34 Kč | |
| 4 | 0625006087 GROOVED BALL BEAR. 608 2RS C3 |
244 Kč | |
| 5 | 76513056144 PUSH ROD CPL. |
568 Kč | |
| 6 | 0025080306S HH COLLAR SCREW M8X30 TX40 |
33 Kč | |
| 7 | 0125080003 WASHER DIN 125 A -8.4 |
10 Kč | |
| 8 | 54603062100 RETURN SPRING FOR BRAKE LEVER |
69 Kč | |
| 9 | 0025060206S HH COLLAR SCREW M6X20 TX30 |
29 Kč | |
| 10 | 54513101044 MAIN BRAKE CYLINDER \'89 |
2 152 Kč | |
| 11 | 76513061000 REPAIR KIT PISTON 13MM |
987 Kč | |
| 12 | 54513151000 RUBBER SLEEVE |
298 Kč | |
| 13 | 54513030044 BRAKE FLUID RESERVOIR \'89 |
272 Kč | |
| 14 | 58007017000 YDNAC CLAMP 10101 (10,4MM) |
21 Kč | |
| 15 | 69013069001 HOSE FOR RESERVOIR 6X1,5 |
246 Kč | |
| 16 | 54513155000 ANGLE PIECE |
226 Kč | |
| 17 | 62111051000 BRAKE LIGHT SWITCH REAR |
490 Kč | |
| 18 | 76542003000 BRAKE HOSE REAR MASTER CYL. |
1 992 Kč | |
| 19 | 76542050000 CLAMP |
82 Kč | |
| 20 | 0025060126 HH COLLAR SCREW M6X12 TX30 |
29 Kč | |
| 21 | 62113020100 BANJO BOLT M10X1X19.5 |
154 Kč | |
| 22 | 0926060000 STOP NUT M6 DIN6926 A2-70 |
39 Kč | |
| 23 | 0025060256 HH COLLAR SCREW M6X25 TX30 |
29 Kč | |
| 24 | 0603100141 SEALING RING DIN 7603 10X14X1 |
27 Kč | |
| 25 | 54813026100 CABLE SUPPORT 10/4MM 2014 |
29 Kč | |
| 26 | 60111094100 BAR SPACER 4/7 BLACK |
53 Kč | |
| 27 | 60113146000 SUPPORT FOR BRAKE HOSE M5 |
34 Kč | |
| 28 | 0025050166 HH COLLAR SCREW M5X16 TX30 |
20 Kč | |
| 29 | 0985050003 SELF LOCKING NUT DIN0985-M 5 |
21 Kč | |
| 30 | 0024060136 HH COLLAR SCREW M6X13 TX30 |
29 Kč | |
| 31 | 76542001000 BRAKE HOSE REAR CALIPER |
1 992 Kč | |
| 99 | 00062030000 BRAKE FLUID DOT5.1 0,25L |
358 Kč |
