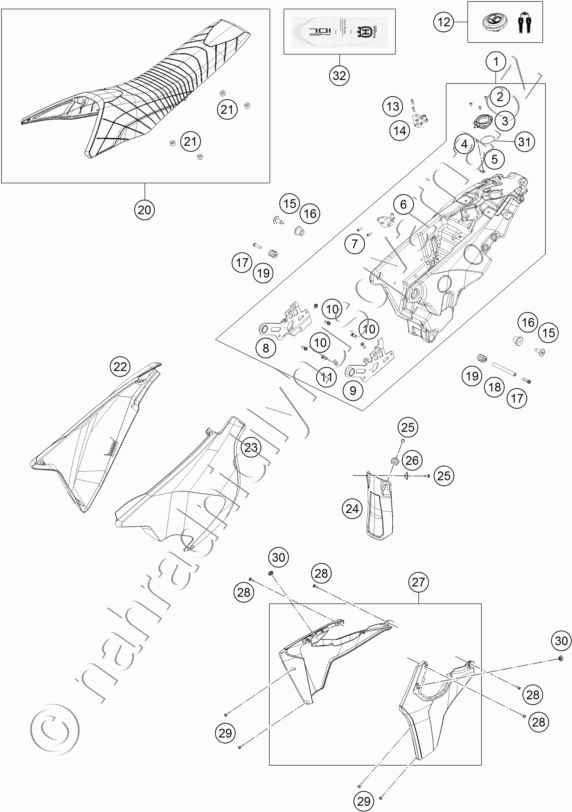

Díly pro TANK, SEAT, COVER
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 27007113144 FUEL TANK CPL. |
28 572 Kč | |
| 2 | 78105081010 SCREW TORX M5X10 |
15 Kč | |
| 3 | 76507108050 CLOSING FLANGE |
201 Kč | |
| 5 | 57013070100 PVC-CLAMP 7,9 MM HEYCO 3355 |
23 Kč | |
| 6 | 58207080100 GAS-LEVEL SENSOR ADV. 2006 |
1 362 Kč | |
| 7 | 0912050163 AH SCREW DIN0912-M 5X16 |
17 Kč | |
| 8 | 27007028000 RIGHT FUEL-TANK SUPPORT PLATE |
881 Kč | |
| 9 | 27007027100 RETAINING BRACKET TANK LEFT |
881 Kč | |
| 10 | 0025080166 HH COLLAR SCREW M8X16 TX40 |
33 Kč | |
| 11 | 27007053000 CLAMP FOR SEAT LOCK LINKAGE |
195 Kč | |
| 12 | 27007008000 TANK CAP |
4 486 Kč | |
| 13 | 0738060181 BHCS ISO 7380 M6X18 |
17 Kč | |
| 14 | 76507050000 SEAT LOCK |
950 Kč | |
| 15 | 76507060000 BEARING BUSHING UP |
661 Kč | |
| 16 | 76507066000 RUBB.BEAR.BOX 12x24x35 L=24,5 |
204 Kč | |
| 17 | 0025080306S HH COLLAR SCREW M8X30 TX40 |
33 Kč | |
| 18 | 76507061000 BEARING BUSHING DOWN |
475 Kč | |
| 19 | 76507065100 RUBBER BUSHING 11,7X24,7 L=26 |
225 Kč | |
| 20 | 27007140100 SEAT |
8 044 Kč | |
| 21 | 27007040045 SEAT RUBBER |
60 Kč | |
| 22 | 2700804100028A REAR SPOILER RIGHT |
1 306 Kč | |
| 23 | 2700804000028A REAR SPOILER LEFT |
1 306 Kč | |
| 24 | 76506010100 SPLASH PROTECTOR |
156 Kč | |
| 25 | 0025060166 HH COLLAR SCREW M6X16 TX30 |
28 Kč | |
| 26 | 72210079000 BUCKET |
69 Kč | |
| 27 | 2700805400028A SPOILER SET ENDURO 17 |
2 369 Kč | |
| 28 | 69008021160 SPECIAL SCREW M5X12 |
52 Kč | |
| 29 | 69008021060 SPECIAL SCREW M5X17 |
44 Kč | |
| 30 | 47106003160 QUICK RELEASE RUBBER GROMMET |
57 Kč | |
| 31 | 0770050030 O-RING 50,00X3,00 VITON |
57 Kč | |
| 32 | 27007097000 DECALSET SEAT 701 |
959 Kč |
