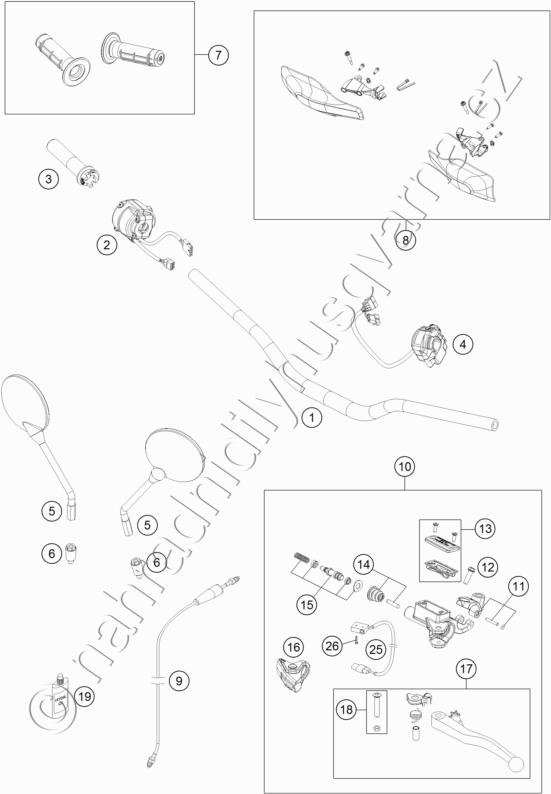

Díly pro HANDLEBAR, CONTROLS
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 7800200100017 HANDLEBAR D=28MM |
2 819 Kč | |
| 2 | 76011073100 START-STOP/E-GAS |
5 128 Kč | |
| 3 | 27002010000 THROTTLE GRIP CLOSED |
600 Kč | |
| 4 | 76511070000 LIGHT SWITCH L/S 08 |
1 924 Kč | |
| 5 | 58412040100 MIRROR, LEFT/RIGHT |
1 148 Kč | |
| 6 | 58412040050 SUPPORT FOR MIRROR LC4 \'98 |
313 Kč | |
| 7 | 80302021000 GRIP SET BLACK/WHITE |
517 Kč | |
| 8 | 2700207900028 HANDGUARD CPL. LE.+RI. WHITE |
1 165 Kč | |
| 9 | 54732063100 CLUTCH PIPE 250/300 2003 |
1 969 Kč | |
| 10 | 27002030044 MASTER CYLINDER D=11 MM |
8 010 Kč | |
| 11 | 76513005000 CLAMP, CYL. PIN, O-RING |
1 148 Kč | |
| 12 | 0025060206 HH COLLAR SCREW M6X20 TX30 |
29 Kč | |
| 13 | 25002033000 COVER HYDR. CLUTCH DOT CPL. |
533 Kč | |
| 14 | 76502046000 PUSH ROD CPL. 13 |
635 Kč | |
| 15 | 27002032000 REP. KIT PISTON DOT 11MM |
2 046 Kč | |
| 16 | 76502037000 PROTECT.CAP FOR LEVER PERCH 13 |
562 Kč | |
| 17 | 27002031000 CLUTCH LEVER CPL. |
1 766 Kč | |
| 18 | 50302038200 LEVER SCREW SHORT CPL. 09 |
437 Kč | |
| 19 | 00062030000 BRAKE FLUID DOT5.1 0,25L |
358 Kč | |
| 25 | 83111049000 CLUTCH SWITCH ATV |
1 714 Kč | |
| 26 | 0985030103 FLAT HEAD SCREW DIN7985 M3x1 |
Na dotaz | 1 |
