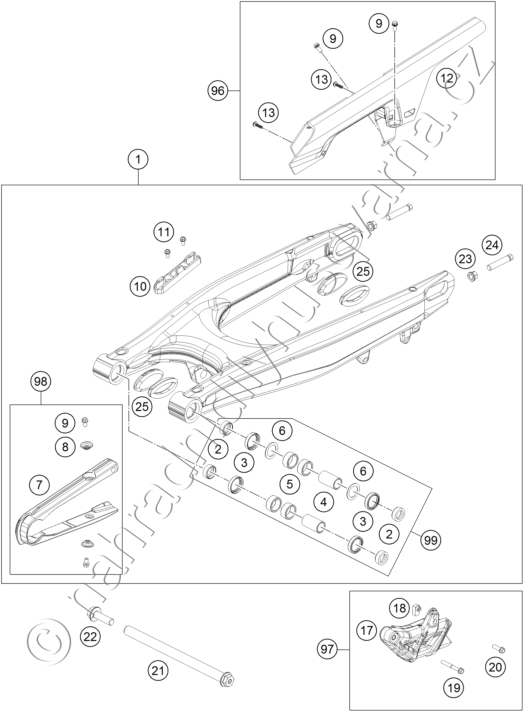

Díly pro SWING ARM
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 76504030144 SWING ARM CPL. |
20 089 Kč | |
| 2 | 76504034000 BUCKET FOR SHAFT SEAL RING |
87 Kč | |
| 3 | 0760253270 RADIAL SHAFT SEAL 25X32X7 |
60 Kč | |
| 4 | 59404032000 BEARING SLEEVE 17X22X38,7 03 |
183 Kč | |
| 5 | 0618222812 NEEDLEBEAR HK2212V 22/28/12 MB |
199 Kč | |
| 6 | 54603036000 STOP DISK 22,2X31,7X1 |
39 Kč | |
| 7 | 76504066000 CHAIN SLIDING GUARD 07 |
238 Kč | |
| 8 | 77304066050 CHAIN SLIDER BUSHING |
39 Kč | |
| 9 | 59009062013 SPECIAL SCREW M6X13 WS=8 10.9 |
20 Kč | |
| 10 | 76504042000 BRAKE LINE GUIDE 08 |
57 Kč | |
| 11 | 0009050106 EJOT SPIRAL SCREW SF M5X10-K |
20 Kč | |
| 12 | 27004060000 CHAINGUARD |
324 Kč | |
| 13 | 0081050181 SCREW FOR PLASTIC K50X18 T20 |
20 Kč | |
| 17 | 78104070100 CHAIN GUIDE EXC |
799 Kč | |
| 18 | 77304070030 INSERTION NUT F. CHAIN GUIDE |
215 Kč | |
| 19 | 0025060456 HH COLLAR SCREW M6X45 TX30 |
29 Kč | |
| 20 | 0025060206 HH COLLAR SCREW M6X20 TX30 |
29 Kč | |
| 21 | 75304037044 SWINGARM BOLT L=246 M12X1,5 |
1 714 Kč | |
| 22 | 76504038000 SPECIAL SCREW M12X40 SW19 |
384 Kč | |
| 23 | 58414030000 HH COLLAR NUT M10X1,25 WS=13 |
36 Kč | |
| 24 | 50304040100 SCREW M10X1.25X50 WS10 |
65 Kč | |
| 25 | 58404041000 CLOSING COVER SWINGARM SM 03 |
114 Kč | |
| 96 | 27004060010 CHAIN GUARD KIT 2016 |
345 Kč | |
| 97 | 77304070310 CHAIN GUIDE KIT REAR 08-14 |
684 Kč | |
| 98 | 76504066010 CHAIN GUARD KIT 08-14 |
318 Kč | |
| 99 | 76504230010 SWINGARM REPAIR KIT 08-13 |
1 315 Kč |
