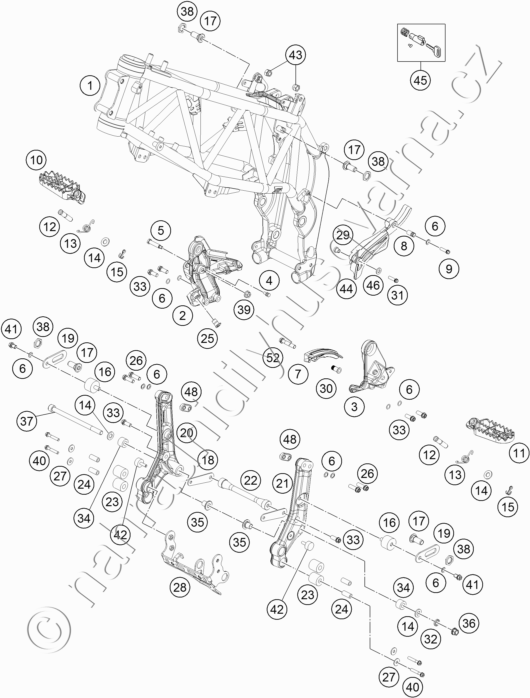

Díly pro FRAME
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 7640310100028 FRAME 450 RALLY WHITE |
103 893 Kč | |
| 2 | 76403139000 FOOTREST BRACKET RIGHT |
5 508 Kč | |
| 3 | 76403138000 FOOTREST BRACKET LEFT |
5 508 Kč | |
| 4 | 76413050010 ARRESTOR |
241 Kč | |
| 5 | 76413050030 BOLT |
384 Kč | |
| 6 | 36003014000 LOCK WASHER 8MM |
15 Kč | |
| 7 | 76404066000 CHAIN SLIDING PART |
422 Kč | |
| 8 | 51103053051 BUSHING 8,2X10X20 |
79 Kč | |
| 9 | 0025080356 HH COLLAR SCREW M8X35 TX40 |
33 Kč | |
| 10 | 76203041250 FOOTREST RIGHT RALLY 07 |
2 910 Kč | |
| 11 | 76203040250 FOOTREST LEFT RALLY 07 |
2 910 Kč | |
| 12 | 54603044000 BOLT FOR FOOTREST 9,8 X 50 |
148 Kč | |
| 13 | 54603041000 FOOTREST SPRING L/S & R/S |
71 Kč | |
| 14 | 0125100003 WASHER DIN 125 A 10.5 |
13 Kč | |
| 15 | 0094032250 PIN DIN 0094-3.2X25 NIRO |
5 Kč | |
| 16 | 76305062000 RUBBER GROMMET 30X20-M8X20 |
164 Kč | |
| 17 | 76407063000 FIXING SCREW TANK |
467 Kč | |
| 18 | 76403005030 RADIATOR STRUT |
299 Kč | |
| 19 | 76403034000 FUEL TANK SUPPORT PLATE |
291 Kč | |
| 20 | 76403106000 ENGINE SUPPORT RIGHT |
2 500 Kč | |
| 21 | 76403105000 ENGINE SUPPORT LEFT |
2 500 Kč | |
| 22 | 76403005040 CROSS MEMBER |
1 240 Kč | |
| 23 | 76203005031 RUBBER INSERT |
350 Kč | |
| 24 | 76203005050 BUSH ENGINE SUPPORT |
563 Kč | |
| 25 | 76403044000 PRESS IN NUT |
534 Kč | |
| 26 | 0025080256 HH COLLAR SCREW M8X25 TX40 |
33 Kč | |
| 27 | 0021060003 WASHER DIN9021-A 6,4 |
17 Kč | |
| 28 | 76412099024 ENGINE GUARD BRACKET CPL. |
1 843 Kč | |
| 29 | 76430047005 SPACER BUSHING CHAIN GUARD |
119 Kč | |
| 30 | 76304266001 BUSHING |
180 Kč | |
| 31 | 0025060356 HH COLLAR SCREW M6X35 TX30 |
29 Kč | |
| 32 | 50233041100 PAIR OF WASHERS M10 NORDLOCK |
61 Kč | |
| 33 | 0025080206 HH COLLAR SCREW M8X20 TX40 |
33 Kč | |
| 34 | 76203018000 ELASTOMER BEARING |
565 Kč | |
| 35 | 76203019000 COLLAR BUSH FOR ELAST.BEARING |
698 Kč | |
| 36 | 54630044000 COLLAR NUT M10 WS=13 |
29 Kč | |
| 37 | 0912101603 AH SCREW DIN0912-M10X160 |
111 Kč | |
| 38 | 60512063050 NUT F.TANK BRAKET REAR |
666 Kč | |
| 39 | 56509064100 SELF LOCKING NUT M6 10.9 |
21 Kč | |
| 41 | 0933080103 HH SCREW DIN0933-M 8X10 |
21 Kč | |
| 42 | 58538010000 RUBBER GROMMET 20X11/M6X18 01 |
222 Kč | |
| 43 | 54310086100 SELF LOCKING NUT M10 CU WS=14 |
20 Kč | |
| 44 | 76403096000 CHAIN SPROCKET COVER |
656 Kč | |
| 45 | 78003035000 STEERING HEAD LOCK 08 |
773 Kč | |
| 46 | 0125060003 WASHER DIN0125-A 6,4 |
13 Kč | |
| 48 | 76403007000 NUT PLATE |
1 004 Kč | |
| 52 | 0025080406 HH COLLAR SCREW M8X40 TX40 |
33 Kč |
