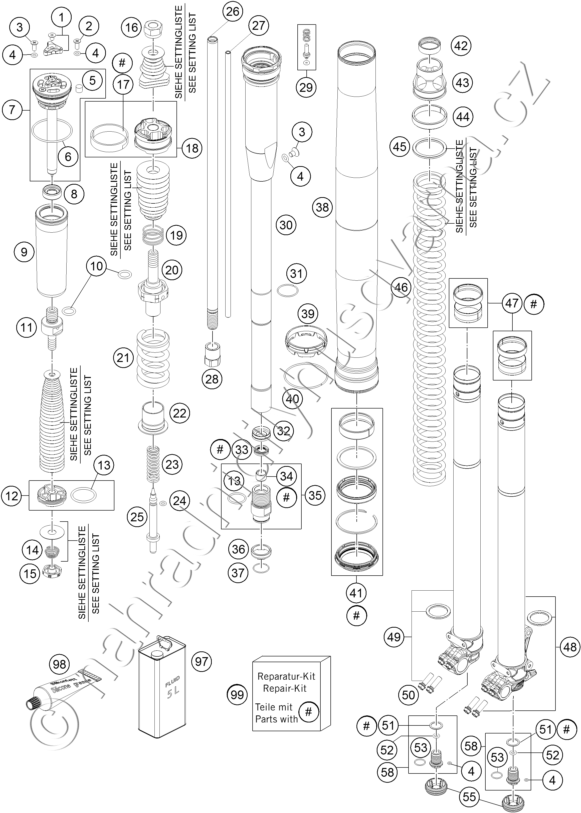

Díly pro FRONT FORK DISASSEMBLED
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 48600811S ADJUSTING KNOB + SCREW |
65 Kč | |
| 2 | 48600526 SCREW M4X10 |
31 Kč | |
| 3 | 48600542 AH SCREW M4X6 |
34 Kč | |
| 4 | 50180222 O-RING NBR 4X1,5 |
29 Kč | |
| 5 | 15080017 SILICON CAP |
41 Kč | |
| 6 | 40140024 O-RING NBR 43X2 |
77 Kč | |
| 7 | 48600516E1 SCREW CAP L=125 |
2 181 Kč | |
| 8 | 48600514 MEMBRANE SLEEVE |
68 Kč | |
| 9 | 48600281 MEMBRANE |
340 Kč | |
| 10 | 48600299 O-RING 6X1,2 NBR |
60 Kč | |
| 11 | 48600509 PISTON ROD COMPRESSION |
352 Kč | |
| 12 | 48600047S PISTON + O-RING |
324 Kč | |
| 13 | 46811499 O-RING NBR 21X2 |
34 Kč | |
| 14 | 48600202 SPRING CHECK VALVE D=0,7 |
29 Kč | |
| 15 | 48600163 CHECK VALVE NUT M6X0,5 D=2 |
127 Kč | |
| 16 | 40540486 NUT M6X0,5 REBOUND |
57 Kč | |
| 17 | 48600455 PISTON RING 5X1X68 |
340 Kč | |
| 18 | 48600575S PISTON REBOUND + PISTON RING |
453 Kč | |
| 19 | 48600382 SHUTTLE VALVE SPRING C=0,4 |
52 Kč | |
| 20 | 48600576 PISTON ROD REBOUND |
243 Kč | |
| 21 | 48600578 SPRING REB. L=32 C=37 DI=13,9 |
134 Kč | |
| 22 | 48600525 GUIDING BUSH REBOUND SPRING |
95 Kč | |
| 23 | 48600444 REBOUND SPRING C=4N/MM |
68 Kč | |
| 24 | 48600298 O-RING 2X1,5 NBR |
60 Kč | |
| 25 | 48600277 ADJUSTER NEEDLE 07 |
124 Kč | |
| 26 | 48600464 PISTON ROD SXS 2005 |
1 710 Kč | |
| 27 | 48600269 ADJUSTING TUBE L=371 |
393 Kč | |
| 28 | 48600459 COUNTERNUT M12X1 WS17 |
332 Kč | |
| 29 | 48600977S PIN KIT |
634 Kč | |
| 30 | 48600519E4 MEMBRANE HOLDER INKL. PIPE |
6 574 Kč | |
| 31 | 48600512 LOCK WASHER D=25,5 |
53 Kč | |
| 32 | 48601056 RING 23,45X8,9 |
68 Kč | |
| 33 | 48600829 SHAFT SEAL RING 12MM |
95 Kč | |
| 34 | 48600430 DU BUSH FOR PISTON ROD |
66 Kč | |
| 35 | 48601055S SCREW SLEEVE M24,5X1 CPL. |
262 Kč | |
| 36 | 48600297 CHECK VALVE STOP |
292 Kč | |
| 37 | 48600446 LOCK WASHER D=20 |
61 Kč | |
| 38 | 48600761 OUTER TUBE L577 D54/60MM |
3 539 Kč | |
| 39 | 48600698 FORK PROTECTION RING 08 |
73 Kč | |
| 40 | 48600016 GUIDING RING D=58MM |
95 Kč | |
| 41 | R14040 GASKET KIT CPL. |
1 764 Kč | |
| 42 | 48600577 RING SPRING-SUPPORT |
138 Kč | |
| 43 | 48600520 SPRING SUPPORT |
692 Kč | |
| 44 | 48600744 GUIDE RING 44 X39 |
95 Kč | |
| 45 | 48600456 SPACER 43X35X2,5 |
340 Kč | |
| 45 | 48600457 SPACER 43X35X5 |
61 Kč | |
| 45 | 48600458 SPACER 43X35X1,5 |
340 Kč | |
| 46 | 91410030S SPRING 5,0 N/MM |
3 382 Kč | |
| 47 | R14047 REP. KIT GUIDE BUSHINGS |
631 Kč | |
| 48 | 48601540S1 AXLE-CL. MA DISC BR+INNERT. LF |
12 237 Kč | |
| 49 | 48601541S1 AXLE-CL. MA DISC BR+INNERT. RE |
9 391 Kč | |
| 50 | 0025080256 HH COLLAR SCREW M8X25 TX40 |
33 Kč | |
| 51 | 48600275 COPPER WASHER 20,5X26X1 |
124 Kč | |
| 52 | 48600301 O-RING NBR 9,5X1,5 |
61 Kč | |
| 53 | 46810811 O-RING NBR 17X2 PA |
55 Kč | |
| 54 | 48600280E SCREW BUSH M20X1 L=33 CPL. |
716 Kč | |
| 55 | 48600141 RUBBER CAP D=35MM |
42 Kč | |
| 97 | 48601166S1 FORK OIL SAE4 5L |
2 949 Kč | |
| 98 | T14034 FUCHS GREASE IPR (250G) |
1 280 Kč | |
| 99 | R14053 REPAIR KIT FORK |
1 921 Kč |
