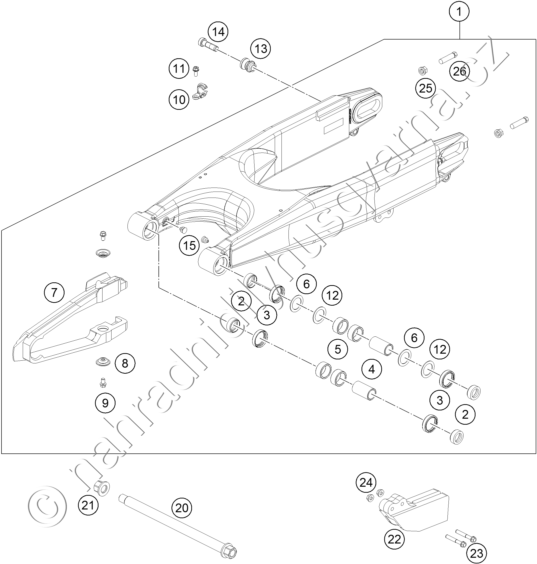

Díly pro SWING ARM
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 76404030044 SWINGARM RALLY CPL. |
40 398 Kč | |
| 2 | 76204034000 SPACER F. SHAFT SEALRING 07 |
974 Kč | |
| 3 | 0760253270 RADIAL SHAFT SEAL 25X32X7 |
60 Kč | |
| 4 | 59404032000 BEARING SLEEVE 17X22X38,7 03 |
183 Kč | |
| 5 | 0618222812 NEEDLEBEAR HK2212V 22/28/12 MB |
199 Kč | |
| 6 | 76203037100 STOP DISK 22X32X1,0 |
20 Kč | |
| 7 | 50304066100 CHAIN GUARD 05 |
400 Kč | |
| 8 | 72210079000 BUCKET |
69 Kč | |
| 9 | 0025060106 HH COLLAR SCREW M6X10 TX30 |
28 Kč | |
| 10 | 54611076100 RETAIN.CLAMP FOR BRAKE HOSE\'96 |
29 Kč | |
| 11 | 0010050103 SPECIAL SCREW M 5,0X10 |
23 Kč | |
| 12 | 76203037000 STOP DISK 22,2X31,7X0,5 |
39 Kč | |
| 13 | 76404059000 SUPPORT F. LIFTING DEVICE |
491 Kč | |
| 14 | 0032100356S AH-COLLAR SCREW M10X35 ISA45 |
36 Kč | |
| 15 | 60004042000 PLUG SFL12 GREY 05 |
25 Kč | |
| 20 | 76204037044 SWINGARM BOLT CPL. 07 |
3 699 Kč | |
| 21 | 54603015000 SELF LOCKING NUT M14X1,5 WS=19 |
71 Kč | |
| 22 | 54607066100 CHAIN GUIDE REAR \'94 |
326 Kč | |
| 23 | 0025060406 HH COLLAR SCREW M6X40 TX30 |
29 Kč | |
| 24 | 56509064100 SELF LOCKING NUT M6 10.9 |
21 Kč | |
| 25 | 58414030000 HH COLLAR NUT M10X1,25 WS=13 |
36 Kč | |
| 26 | 50304040100 SCREW M10X1.25X50 WS10 |
65 Kč |
