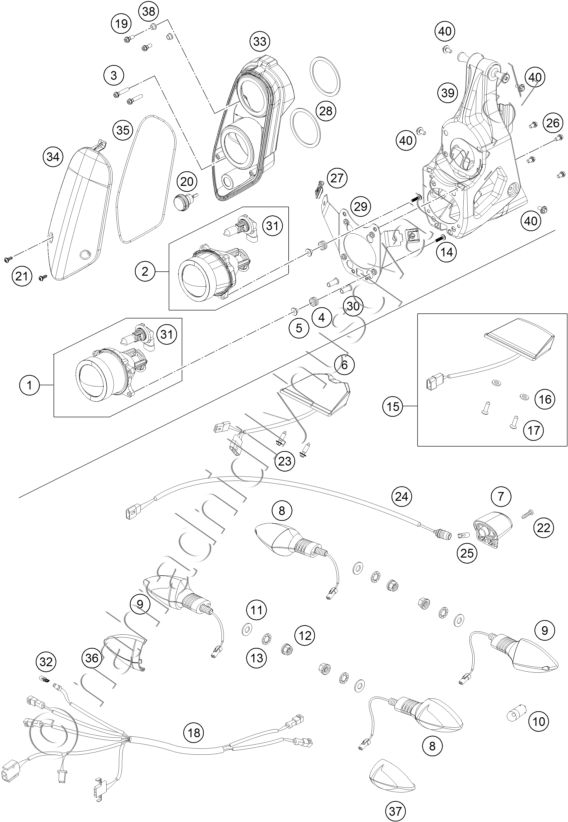

Díly pro LIGHTING SYSTEM
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 76414001000 HEADLIGHT HIGH BEAM |
2 647 Kč | |
| 2 | 76214002000 HEADLIGHT LOW BEAM 07 |
3 552 Kč | |
| 3 | 0025060306 HH COLLAR SCREW M6X30 TX30 |
29 Kč | |
| 4 | 31008060000 RUBBER GROMMET D=8MM OPEN |
61 Kč | |
| 5 | 76408001004 BUSHING |
119 Kč | |
| 6 | 76514040000 REAR LIGHT |
1 878 Kč | |
| 7 | 75014047000 LICENSE PLATE ILLUMINATION 07 |
212 Kč | |
| 8 | 78114025000 FLASHER CPL.FRONT L/S REAR R/S |
453 Kč | |
| 9 | 78114026000 FLASHER CPL.FRONT R/S REAR L/S |
453 Kč | |
| 10 | 60114027000 BULB 12V ORANGE (RY10W) |
53 Kč | |
| 11 | 0125100003 WASHER DIN 125 A 10.5 |
13 Kč | |
| 12 | 58414030000 HH COLLAR NUT M10X1,25 WS=13 |
36 Kč | |
| 13 | 0797100003 LOCK WASHER DIN6797-J10,5 ZI |
17 Kč | |
| 14 | 76414003002 EJOMAT PT SCREW 50X20 |
39 Kč | |
| 15 | 76314040044 ADDITIONAL REAR LIGHT CPL. |
900 Kč | |
| 16 | 77332036004 WASHER 5,3X12X0,5 |
246 Kč | |
| 17 | 0985050103 OVAL HEAD SCR. DIN7985-M 5X10 |
17 Kč | |
| 18 | 76411080000 WIRING HARNESS FLASHER |
2 676 Kč | |
| 19 | 0025060126 HH COLLAR SCREW M6X12 TX30 |
29 Kč | |
| 20 | 76414004000 POSITION LIGHT |
1 440 Kč | |
| 21 | 0081050141 EJOT PT SCREW K50X14 |
26 Kč | |
| 22 | 0081250181 SCREW FOR PLASTIC 50X18 T20 |
17 Kč | |
| 23 | 0017060205 SCREW FOR PLASTIC K60X20 SW6 |
29 Kč | |
| 24 | 76511078000 WIRING HARN. LIC. PLATE ILLUM. |
175 Kč | |
| 25 | 49011435100 BULB 12V 5W (W2,1X9,5D) PHIL. |
68 Kč | |
| 26 | 0025060106 HH COLLAR SCREW M6X10 TX30 |
28 Kč | |
| 27 | 45007040052 CLIP |
77 Kč | |
| 28 | 76408001005 CELLULAR RUBBER |
364 Kč | |
| 29 | 76408004010 FRONTLIGHT MASK HOLDER ASSY |
1 527 Kč | |
| 30 | 76408001003 BUSH |
153 Kč | |
| 31 | 76414003001 BULB HB3 |
332 Kč | |
| 32 | 49111425200 BULB 12V 2,3W (W2X4,6D) |
23 Kč | |
| 33 | 76408001000 FRONTLIGHT MASK |
802 Kč | |
| 34 | 76412079000 STONE GUARD |
1 897 Kč | |
| 35 | 69006001060 GASKET F. AIRBOX |
198 Kč | |
| 36 | 78114028000 FLASHER LENS L/S R/S TRANSP. |
130 Kč | |
| 37 | 78114027000 FLASHER LENS FRO.L/S-REAR R/S |
130 Kč | |
| 38 | 76408001002 SLEEVE |
153 Kč | |
| 39 | 76408003000 LIGHT SUPPORT STRUCTURE ASSY |
56 582 Kč | |
| 40 | 0024060136 HH COLLAR SCREW M6X13 TX30 |
29 Kč |
