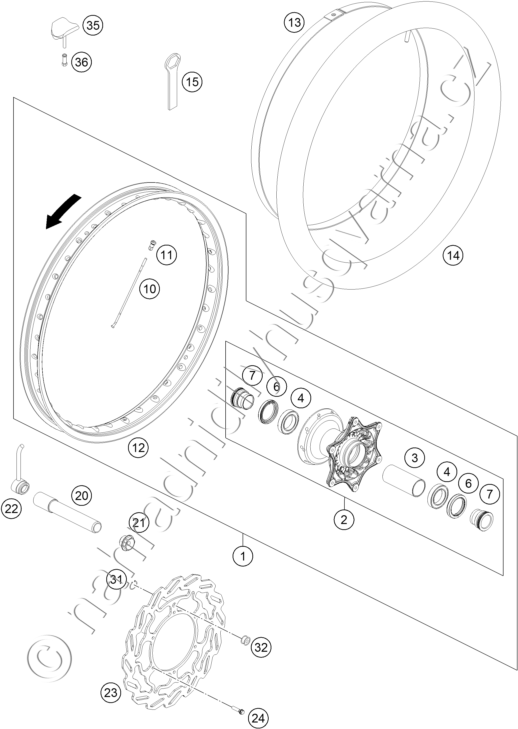

Díly pro FRONT WHEEL
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 7640900104430 FRONTWHEEL CPL.1,6X21EXCEL |
14 951 Kč | |
| 2 | 75309010044 FRONT HUB CPL. 08 |
6 664 Kč | |
| 3 | 54809011000 BEA.SPACERTUBE 35X2 L=79,4 03 |
446 Kč | |
| 4 | 0625069068 GR.BALL BEAR.6906 DDU2CG23S6NM |
445 Kč | |
| 6 | 0760354771 SHAFT SEAL RING 35X47X7 TC |
65 Kč | |
| 7 | 78009012000 SPACER BUSHING F. FR. WHEEL 08 |
490 Kč | |
| 10 | 76409071240 SPOKE |
65 Kč | |
| 11 | 76409072000 SPOKE NIPPLE QUADRAX M4,5 |
26 Kč | |
| 12 | 7730907000030 RIM 1,6\'\'X21\'\' EXCEL SXS 08 |
Na dotaz | 1 |
| 13 | 50309073000 RIM BAND 21\'\' |
198 Kč | |
| 14 | 50309075000 HOSE 21\'\' |
512 Kč | |
| 15 | 76212060032 RING WRENCH 32MM |
999 Kč | |
| 20 | 77309081000 WHEEL SPIN.FR. D=26 M24x1,5 07 |
1 413 Kč | |
| 21 | 76209082000 COLLAR SCREW FRONT AXLE WS32 |
1 326 Kč | |
| 22 | 54809081060 FRONT AXLE PULL 26MM 04 |
393 Kč | |
| 23 | 58509060000 BRAKE DISC FRONT 07 |
3 735 Kč | |
| 24 | 59009062013 SPECIAL SCREW M6X13 WS=8 10.9 |
20 Kč | |
| 31 | 0471009104 CIRCLIP DIN0471- 9X1 INOX |
39 Kč | |
| 32 | 54814069050 MAGNET FOR DIGITAL SPEEDOM. 03 |
288 Kč | |
| 35 | 78109090000 RIM LOCK 1,60\'\' |
375 Kč | |
| 36 | 77110090050 NUT FOR WHEEL HOLDER |
33 Kč |
