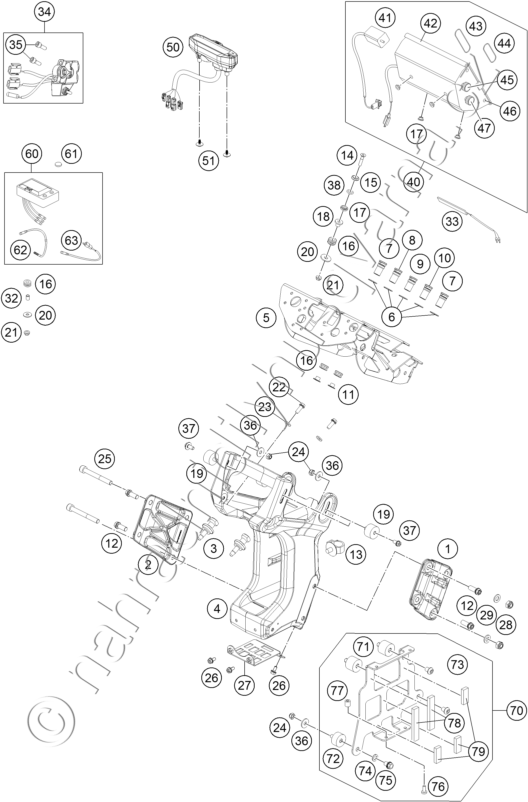

Díly pro INSTRUMENTS / LOCK SYSTEM
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 76412098190 ATTACHMENT FOR NAVI SUPP. L/S |
2 144 Kč | |
| 2 | 76412098180 ATTACHMENT FOR NAVI SUPP. R/S |
2 144 Kč | |
| 3 | 76412098043 POSITION PIN |
291 Kč | |
| 4 | 76412098040 ROADBOOK SUPPORT |
52 789 Kč | |
| 5 | 76412091000 ROAD BOOK CARRIER CPL. |
4 357 Kč | |
| 6 | 0471140100 RETAINING RING DIN 471 14X1 |
5 Kč | |
| 7 | 81214086000 INDICATOR LIGHT RESERVE |
95 Kč | |
| 8 | 58011021300 H.BEAM INDICATOR LIGHT BLUE\'98 |
68 Kč | |
| 9 | 81214083000 INDICATOR LIGHT LED YELLOW FI |
501 Kč | |
| 10 | 58011025000 OIL INDICATOR LIGHT RED |
68 Kč | |
| 11 | 76408001004 BUSHING |
119 Kč | |
| 12 | 0025080206 HH COLLAR SCREW M8X20 TX40 |
33 Kč | |
| 13 | 58111076000 CABLE SUPPORT KHS NR.150-47610 |
65 Kč | |
| 14 | 0991050253 FLAT HEAD SCREW DIN7991-M 5X25 |
17 Kč | |
| 15 | 40006006000 WASHER 6MM |
15 Kč | |
| 16 | 31008060000 RUBBER GROMMET D=8MM OPEN |
61 Kč | |
| 17 | 50213161000 COLLAR BUSHING |
61 Kč | |
| 18 | 76412091043 BUSHING |
132 Kč | |
| 19 | 76212092031 RUB. GROM. 25X15XTYP B CPL. |
390 Kč | |
| 20 | 0021050003 WASHER DIN 9021 A - 5.3 |
17 Kč | |
| 21 | 0985050003 SELF LOCKING NUT DIN0985-M 5 |
21 Kč | |
| 22 | 0025060166 HH COLLAR SCREW M6X16 TX30 |
28 Kč | |
| 23 | 0125060003 WASHER DIN0125-A 6,4 |
13 Kč | |
| 24 | 0985060003 SELF LOCK. NUT DIN0985-M 6 |
20 Kč | |
| 25 | 0912080706 CYL-SCREW DIN 912-M8X70 |
52 Kč | |
| 26 | 0025050106 HH COLLAR SCREW M5X10 TX30 |
20 Kč | |
| 27 | 76412098050 PLUG BOARD ZSB |
958 Kč | |
| 28 | 0985080003 SELF LOCKING NUT DIN0985-M 8 |
20 Kč | |
| 29 | 0125080003 WASHER DIN 125 A -8.4 |
10 Kč | |
| 32 | 58011039000 SPACER BUSHING 6,5 X 8 X 7 |
42 Kč | |
| 33 | 76212098000 LIGHT DIODE CPL.RALLYE |
3 193 Kč | |
| 34 | 76412175044 ROADBOOK SWITCH CPL. |
10 815 Kč | |
| 35 | 0912060163 AH SCREW DIN0912-M 6X16 |
17 Kč | |
| 36 | 0021060003 WASHER DIN9021-A 6,4 |
17 Kč | |
| 37 | 0024060106 HH COLLAR SCREW M6X10 TX30 |
29 Kč | |
| 38 | 0770090021 O-RING 9X2 VITON |
18 Kč | |
| 40 | 76212098044 ROADBOOK CPL. 2008 |
16 059 Kč | |
| 41 | 58512074044 ROADBOOK ENGINE CPL. 03 |
7 953 Kč | |
| 42 | 58512074020 PLASTIC COVER FOR ROADBOOK 03 |
1 666 Kč | |
| 43 | 58512074070 O-RING FOR ROADBOOK LONG 03 |
304 Kč | |
| 44 | 58512074060 O-RING FOR ROADBOOK SHORT 03 |
199 Kč | |
| 45 | 58512074030 ALU-BUTTON TOP FOR ROADBOOK 03 |
579 Kč | |
| 46 | 58512074050 PLASTIC BUSHING F. ROADBOOK 03 |
21 Kč | |
| 47 | 58512074040 ALU-BUTTON BASE F. ROADBOOK 03 |
676 Kč | |
| 50 | 77714069600 SPEEDOMETER DIGITAL KM/H F. 21\'\' |
6 992 Kč | |
| 51 | 0081645121 EJOT DELTA PT SCREW 45X12-Z |
23 Kč | |
| 60 | 76412085000 |
Na dotaz | 1 |
| 61 | 58512085160 BATTERY FOR ICO TRIPMASTER 04 |
154 Kč | |
| 62 | 76412085010 WHEEL SENSOR TRIPMASTER RNS |
2 617 Kč | |
| 63 | 76412085020 ELECTRIC CABLE TRIPMASTER RNS |
733 Kč | |
| 70 | 76412084033M01 EMERGENCY SENDER CPL. |
1 176 Kč | |
| 71 | 43205062100 SILENTBLOC 20X15-M6X10-(1) |
106 Kč | |
| 72 | 76412084006M01 RUBBER GROMMET 20X10-M6X10 |
76 Kč | |
| 73 | 0902060083 AH OVAL SCREW ISO 7380 M 6X8 |
23 Kč | |
| 74 | 50233041000 PAIR OF WASHERS M 6 NORDLOCK |
39 Kč | |
| 75 | 0025060086 HH COLLAR SCREW M6X8 TX30 |
29 Kč | |
| 76 | 07985040103 |
Na dotaz | 2 |
| 77 | 76412084002M01 SLEEVE EMERGENCY SENDER |
31 Kč | |
| 78 | 76412084003M01 FOAM RUBBER 55MM |
135 Kč | |
| 79 | 76412084004M01 FOAM RUBBER 27MM |
135 Kč |
