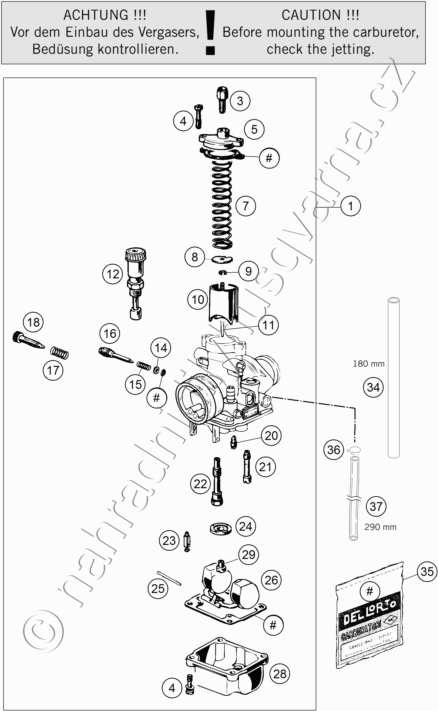

Díly pro CARBURETOR
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 45231001200 CARBUR. DELLO. PHBG 19BS 15 |
5 591 Kč | |
| 3 | 57031525000 ADJUSTMENT SCREW M6X0,75 |
84 Kč | |
| 4 | 0016040133 HH COLLAR SCREW M 4X13 WS=6 |
18 Kč | |
| 5 | 45131027000 CARBURETOR COVER DELLORTO 19 |
69 Kč | |
| 7 | 45131030000 SPRING DELLORTO |
55 Kč | |
| 8 | 45131109000 RETAINING SPRING DELLORTO |
55 Kč | |
| 9 | 0799025055 TAB WASHER DIN6799-RS 2,5 |
60 Kč | |
| 10 | 45131035000 THR. VALVE DELLO.19 60 2001 |
627 Kč | |
| 10 | 45131035040 THR. VALVE DELLO.40 2008 |
669 Kč | |
| 11 | 45131034007 JET NEEDLE W7 |
275 Kč | |
| 11 | 45131034009 JET NEEDLE W9 |
275 Kč | |
| 12 | 45131048000 STARTING BUTTON DELLORTO 19 |
558 Kč | |
| 14 | 57031572000 WASHER 3,3 X 5,8 X 0,5 |
29 Kč | |
| 15 | 45131015000 SPRING DELLORTO |
34 Kč | |
| 16 | 45131017000 AIR ADJUST SCREW DELLORTO |
106 Kč | |
| 17 | 45131518000 SPRING |
52 Kč | |
| 18 | 45131019000 IDLE ADJUST SCREW |
106 Kč | |
| 20 | 45131007045 IDLING JET 45 DELLORTO |
95 Kč | |
| 20 | 45131007048 IDLING JET 48 DELLORTO |
95 Kč | |
| 20 | 45131007050 IDLING JET 50 DELLORTO |
95 Kč | |
| 20 | 45131007052 IDLING JET 52 DELLORTO |
95 Kč | |
| 20 | 45131007055 IDLING JET 55 DELLORTO |
95 Kč | |
| 20 | 45131007058 IDLING JET 58 DELLORTO |
95 Kč | |
| 21 | 45131051060 START JET 60 DELLORTO |
150 Kč | |
| 22 | 45131021260 NEEDLE JET 260 |
307 Kč | |
| 22 | 45131021262 NEEDLE JET 262 |
283 Kč | |
| 23 | 45131020000 FLOATING NEEDLE VALVE DELLORTO |
114 Kč | |
| 24 | 45131074000 COVER DELLORTO |
60 Kč | |
| 25 | 45131008000 PIN DELLORTO |
45 Kč | |
| 26 | 45131009000 FLOAT 4 GR. |
853 Kč | |
| 28 | 45131011000 FLOAT BOWL DELLORTO 19 |
121 Kč | |
| 29 | 15131123080 MAIN JET 80 DELLORTO |
102 Kč | |
| 29 | 15131123085 MAIN JET 85 DELLORTO |
102 Kč | |
| 29 | 15131123090 MAIN JET 90 DELLORTO |
102 Kč | |
| 29 | 15131123095 MAIN JET 95 DELLORTO |
102 Kč | |
| 34 | 58307016001 FUEL HOSE VITON 6X1,5 PER/M |
1 113 Kč | |
| 35 | 45131099000 GASKET SET DELLORTO 19 |
185 Kč | |
| 36 | 54531696000 CLAMP 6 MM |
36 Kč | |
| 37 | 31007007101 PVC-HOSE 4X6MM |
76 Kč |
