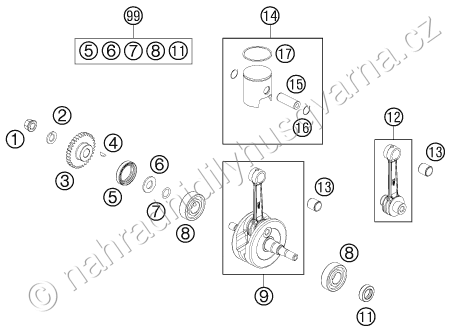

Díly pro CRANKSHAFT, PISTON
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 58414030000 HH COLLAR NUT M10X1,25 WS=13 |
36 Kč | |
| 2 | 45230072000 LOCKING RING VSK 10 |
20 Kč | |
| 3 | 45232023033 PRIMARY DRIVE 33T |
2 487 Kč | |
| 4 | 0888030037 WOODRUFF KEY DIN6888-3X3,7 |
21 Kč | |
| 5 | 0760263561 SHAFT SEAL RING 26X35X6BSL NB |
73 Kč | |
| 6 | 45230016000 SPACER WASHER - CRANKSHAFT |
92 Kč | |
| 7 | 0770120020 O-RING 12,00X2,00 NBR 70 |
17 Kč | |
| 8 | 0625062035 BALL BEARING 6203 JR2 C3 |
215 Kč | |
| 9 | 45230018000 CRANKSHAFT CPL. |
7 730 Kč | |
| 11 | 0760152472 SHAFT SEAL RING 15X24X7 A-DUO |
76 Kč | |
| 12 | 45230015000 PISTON ROD REP-SET 09 |
4 697 Kč | |
| 13 | 45130034000 NEEDLE BEAR.PISTONPIN 12X15X15 |
172 Kč | |
| 14 | 45230007000 I PISTON CPL. I 2009 |
1 527 Kč | |
| 14 | 45230007000 II PISTON CPL. II 2009 |
1 527 Kč | |
| 15 | 45230033000 PISTON BOLT 09 |
138 Kč | |
| 16 | 45230074000 CIRCLIP 09 |
25 Kč | |
| 17 | 45230030000 PISTONRING 09 |
985 Kč | |
| 99 | 00050002313 CRANKSHAFT REP. KIT 50 SX 13 |
698 Kč |
