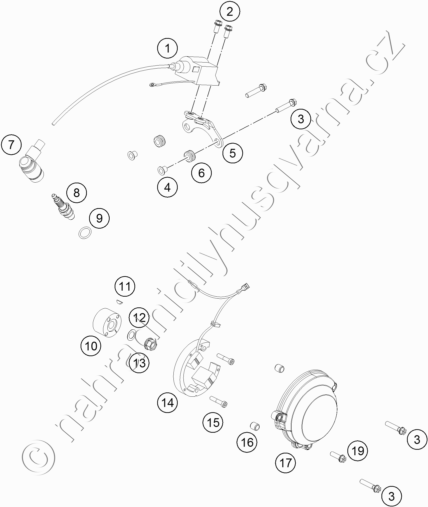

Díly pro IGNITION SYSTEM
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 45239006100 IGNITION COIL |
2 075 Kč | |
| 2 | 0025060126 HH COLLAR SCREW M6X12 TX30 |
29 Kč | |
| 3 | 0025060306 HH COLLAR SCREW M6X30 TX30 |
29 Kč | |
| 4 | 45239060050 COLLAR BUSHING 6,3X8X13X9,5 |
77 Kč | |
| 5 | 45239010000 IGNIT. COIL RETAIN. PLATE CPL. |
456 Kč | |
| 6 | 31008060000 RUBBER GROMMET D=8MM OPEN |
61 Kč | |
| 7 | 46239090000 SPARK PLUG CONNECTOR |
259 Kč | |
| 8 | 45239093000 SPARK PLUG LR8B |
318 Kč | |
| 9 | 0770012030 O-RING 12,00X3,0 VITON 75 |
44 Kč | |
| 10 | 45139005100 FLYWEEL ROTOR 50 2004 |
1 072 Kč | |
| 11 | 0888025030 WOODRUFF KEY DIN6888-2,5X3 |
86 Kč | |
| 12 | 45132020000 WASHER 10,4X16,8X0,4 |
27 Kč | |
| 13 | 58414030000 HH COLLAR NUT M10X1,25 WS=13 |
36 Kč | |
| 14 | 45139004000 FLYWHEEL STATOR 50CCM LC 2001 |
1 961 Kč | |
| 15 | 0012050253 AH SCREW DIN6912 M5X25 |
17 Kč | |
| 16 | 45230024000 DOWEL 9,8X7X5.5 |
53 Kč | |
| 17 | 45230602000 IGNITION COVER |
1 023 Kč | |
| 19 | 0025060206 HH COLLAR SCREW M6X20 TX30 |
29 Kč |
