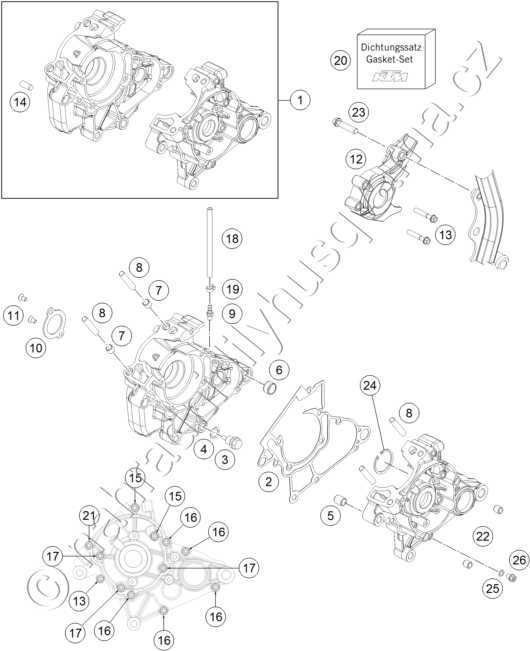

Díly pro ENGINE CASE
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 45230000333 ENGINE CASE CPL. 50SX |
9 517 Kč | |
| 2 | 45230039000 ENGINE CASE GASKET |
230 Kč | |
| 3 | 58030021100 OILDRAIN PLUG WITH MAGNET |
196 Kč | |
| 4 | 58038022000 CU-SEAL RING DIN7603-12X18X1,5 |
28 Kč | |
| 5 | 46230024000 DOWEL 12X9X14,5 |
82 Kč | |
| 6 | 58330023000 DOWEL 17 X 14 X 9,5 |
92 Kč | |
| 7 | 46230023000 DOWEL 10X8,2X10 |
73 Kč | |
| 8 | 46030043000 STUD M8X41 |
66 Kč | |
| 9 | 58336020190 VACUUM CONECTION M6/3MM \'97 |
73 Kč | |
| 10 | 45230017000 BEARING BRACKET |
57 Kč | |
| 11 | 0019050106S HEX LOBE COUNTERSUNC SCREW M5X10 - 10.9 |
18 Kč | |
| 12 | 45230060000 CHAIN GUARD |
328 Kč | |
| 13 | 0025060356 HH COLLAR SCREW M6X35 TX30 |
29 Kč | |
| 14 | 0325080200 CYLINDER STUD DIN6325 8X20 M6 |
31 Kč | |
| 15 | 0025060556 HH COLLAR SCREW M6X55 TX30 |
29 Kč | |
| 16 | 0025060306 HH COLLAR SCREW M6X30 TX30 |
29 Kč | |
| 17 | 0025060406 HH COLLAR SCREW M6X40 TX30 |
29 Kč | |
| 18 | 31007007101 PVC-HOSE 4X6MM |
76 Kč | |
| 19 | 45230089000 YDNAC-CLAMP 10068 (6,8MM) |
17 Kč | |
| 20 | 45230099000 GASKET SET 50 SX 2009 |
1 787 Kč | |
| 21 | 0025060206 HH COLLAR SCREW M6X20 TX30 |
29 Kč | |
| 22 | 45230024000 DOWEL 9,8X7X5.5 |
53 Kč | |
| 23 | 0025080356 HH COLLAR SCREW M8X35 TX40 |
33 Kč | |
| 24 | 0472035150 CIRCLIP DIN0472-35X1,5 |
39 Kč | |
| 25 | 0603061001 CU-SEAL RING DIN7603-6X10X1 |
20 Kč | |
| 26 | 0025060086 HH COLLAR SCREW M6X8 TX30 |
29 Kč |
