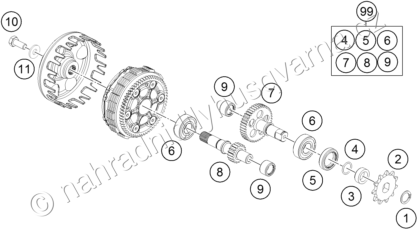

Díly pro TRANSMISSION
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 0471150010 CIRCLIP DIN0471-15X1 |
29 Kč | |
| 2 | 45233029010 SPROCKET 10 T. |
360 Kč | |
| 2 | 45233029011 SPROCKET 11 T. |
360 Kč | |
| 3 | 45233030000 DISANCESPACER F. SPROCKET |
211 Kč | |
| 4 | 0770015018 O-RING 15,00X1,80 |
18 Kč | |
| 5 | 0760223270 SHAFT SEAL RING 22X32X7 BSL |
58 Kč | |
| 6 | 45133028000 BALL BEARING 15X35X11 |
262 Kč | |
| 7 | 45233010200 COUNTER SHAFT |
2 465 Kč | |
| 8 | 45233001200 MAIN SHAFT |
1 516 Kč | |
| 9 | 54632095000 NEEDLE SLEEVE HK 1412 14X20X12 |
97 Kč | |
| 10 | 0035080206S SHCS M8X20 TX45 |
52 Kč | |
| 11 | 0340084234 WASHER DIN 6340 8,4X23X4 |
23 Kč | |
| 99 | 00050000948 COUNTER SHAFT REP. KIT 50 SX |
2 527 Kč |
