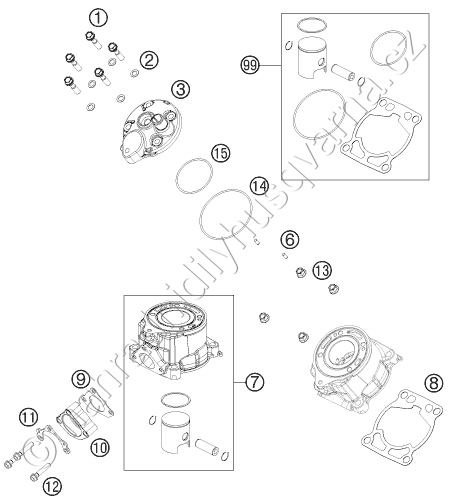

Díly pro CYLINDER, CYLINDER HEAD
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 50430079000 CYLINDER HEAD SCREW |
77 Kč | |
| 2 | 0603070121 CU-SEAL RING DIN7603- 7,3X12X1 |
23 Kč | |
| 3 | 45230006000 CYLINDER HEAD |
2 931 Kč | |
| 6 | 0402040980 NEEDLE ROL.DIN5402 NRB 4X9,8 |
23 Kč | |
| 7 | 45230038000 CYLINDER + PISTON |
7 364 Kč | |
| 8 | 46230035020 CYLINDER BASE GASKET 0,2 MM |
86 Kč | |
| 8 | 46230035040 CYLINDER BASE GASKET 0,4 MM |
86 Kč | |
| 8 | 46230035050 CYLINDER BASE GASKET 0,5 MM |
92 Kč | |
| 8 | 46230035060 CYLINDER BASE GASKET 0,6MM |
98 Kč | |
| 9 | 45205004000 EXHAUST FLANGE GASKET |
124 Kč | |
| 10 | 45205003000 EXHAUST FLANGE |
262 Kč | |
| 11 | 46205003050 BRACKET FOR SPRINGHOLDER |
307 Kč | |
| 12 | 0025060306 HH COLLAR SCREW M6X30 TX30 |
29 Kč | |
| 13 | 46030045000 FLANGED NUT M8 WS10 |
87 Kč | |
| 14 | 0770078020 O-RING 78,00X2,00 VIT. BLACK |
60 Kč | |
| 15 | 0770052020 O-RING 52,00X2,0 VITON 75 |
106 Kč | |
| 99 | 00050000208 PISTON KIT GR.I 50 SX 09-14 |
2 017 Kč | |
| 99 | 00050000209 PISTON KIT GR.II 50 SX 09-14 |
2 017 Kč |
