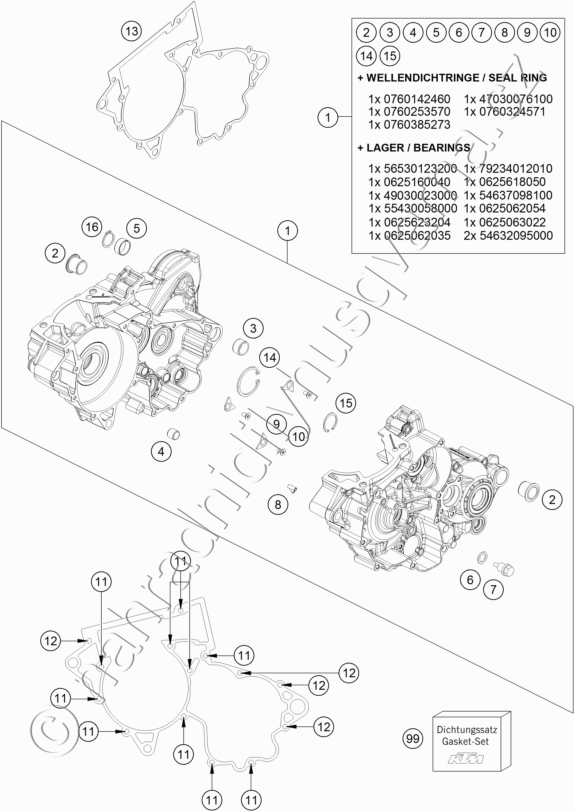

Díly pro ENGINE CASE
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 55430000133 ENGINE CASE CPL. |
18 980 Kč | |
| 2 | 75030010100 CASE BUSH |
195 Kč | |
| 3 | 54830027000 DOWEL 21X12 03 |
103 Kč | |
| 4 | 54630027000 DOWEL BUSHING 13,8X11X12 |
143 Kč | |
| 5 | 79433053150 BRONZE BUSH |
158 Kč | |
| 6 | 58038022000 CU-SEAL RING DIN7603-12X18X1,5 |
28 Kč | |
| 7 | 58030021100 OILDRAIN PLUG WITH MAGNET |
196 Kč | |
| 8 | 45130022000 ANGLE PIECE 50CCM LC 2001 |
84 Kč | |
| 9 | 75030085000 RETAINING PLATE F. CS BEARING |
86 Kč | |
| 10 | 0019050121S INT. TORX FLAT HEAD M5X12 T25 |
28 Kč | |
| 11 | 0025060456 HH COLLAR SCREW M6X45 TX30 |
29 Kč | |
| 12 | 0025060606 HH COLLAR SCREW M6X60 TX30 |
29 Kč | |
| 13 | 55430039000 ENGINE CASE GASKET |
626 Kč | |
| 14 | 0472042175 CIRCLIP DIN0472-42X1,75 |
52 Kč | |
| 15 | 55430059100 CIRCLIP DIN0472-28X1,2 |
15 Kč | |
| 16 | 0471200120 CIRCLIP DIN471 20X1,2 |
28 Kč | |
| 99 | 55430199000 GASKET SET 250 EXC/SX 17 |
6 058 Kč |
