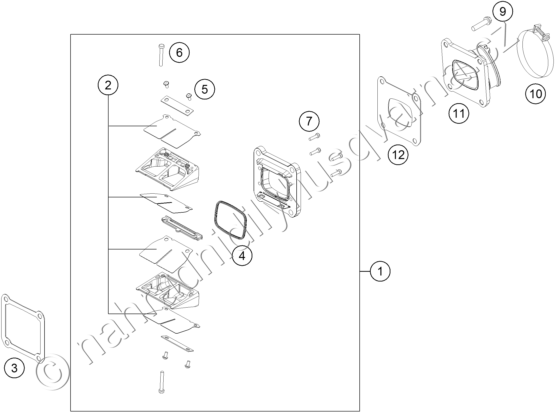

Díly pro REED VALVE CASE
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 50430151044 REED VALVE CASE CPL. |
4 762 Kč | |
| 2 | 54830052344 REED VALVE SET |
2 328 Kč | |
| 3 | 50430098050 GASKET REED VALVE CASE |
171 Kč | |
| 4 | 54830153050 GASKET SUPPORTING PLATE |
464 Kč | |
| 5 | 00810300553 EJOT DELTA PT SCREW 30X5,5 |
17 Kč | |
| 6 | 0081035253 EJOT DELTA PT SCREW 35X25 |
17 Kč | |
| 7 | 0081030124 EJOT DELTA PT SCREW 30X12 |
17 Kč | |
| 9 | 0025060256 HH COLLAR SCREW M6X25 TX30 |
29 Kč | |
| 10 | 54830061000 CLAMP 54/09 MIXED |
113 Kč | |
| 11 | 55430050200 INTAKE FLANGE |
882 Kč | |
| 12 | 50430098060 GASKET INTAKE FLANGE |
171 Kč |
