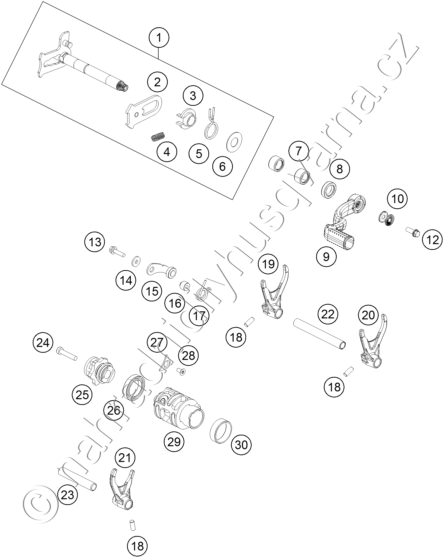

Díly pro SHIFTING MECHANISM
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 55434005133 SHIFT SHAFT CPL. |
1 661 Kč | |
| 2 | 79234008144 SLIDING PLATE CPL. |
477 Kč | |
| 3 | 54634020000 SPRING GUIDE |
116 Kč | |
| 4 | 56534013100 TENSIONING SPRING 0,8MM |
44 Kč | |
| 5 | 54834014000 RETURN SPRING 03 |
66 Kč | |
| 6 | 54634050000 STOP DISK 14X30X1 |
29 Kč | |
| 7 | 54632095000 NEEDLE SLEEVE HK 1412 14X20X12 |
97 Kč | |
| 8 | 0760142460 RADIAL SHAFT SEAL 14X24X6 B |
77 Kč | |
| 9 | 55434031000 SHIFTING LEVER CPL. |
1 370 Kč | |
| 10 | 50233041500 PAIR NORDLOCK WASHER M6 |
39 Kč | |
| 12 | 0024060156S HH COLLAR SCREW M6X15 TX30 |
12 Kč | |
| 13 | 0025050206 HH COLLAR SCREW M5X20 TX30 |
20 Kč | |
| 14 | 0349000050 WASHER DIN7349-5X15X2 |
17 Kč | |
| 15 | 55434024000 LOCKING LEVER CPL. |
959 Kč | |
| 16 | 54634052300 SLEEVE FOR LOCKING LEVER |
63 Kč | |
| 17 | 55434023100 LOCKING LEVER SPRING |
69 Kč | |
| 18 | 0402061480 NEEDLE ROLLER DIN5402 6X14,8 |
50 Kč | |
| 19 | 79234003000 SHIFTING FORK 1ST/3RD GEAR |
1 283 Kč | |
| 20 | 79234002000 SHIFTING FORK 2ND GEAR |
1 283 Kč | |
| 21 | 79234001000 SHIFTING FORK 4TH/5TH GEAR |
1 283 Kč | |
| 22 | 77034019000 SHIFTING MAIN L=93MM 05 |
207 Kč | |
| 23 | 54834019000 SHIFT. RAIL MAIN SHAFT 250/300 |
206 Kč | |
| 24 | 0984060302 AH SCREW DIN6912 M 6X30 |
21 Kč | |
| 25 | 55434015000 GEARSHIFT CPL. |
768 Kč | |
| 26 | 0625618050 BALL BEARING 61805 C3 |
601 Kč | |
| 27 | 75030085000 RETAINING PLATE F. CS BEARING |
86 Kč | |
| 28 | 0019050106S HEX LOBE COUNTERSUNC SCREW M5X10 - 10.9 |
18 Kč | |
| 29 | 79234012000 SHIFT ROLLER 5G |
2 338 Kč | |
| 30 | 79234012010 FRICTION BEARING CONTROLLER |
467 Kč |
