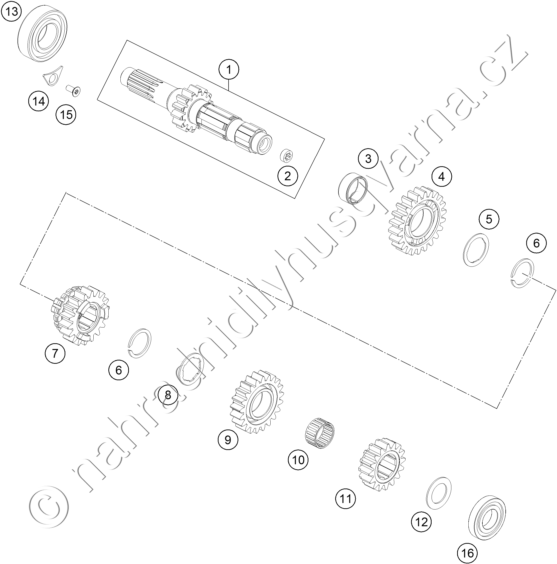

Díly pro TRANSMISSION I - MAIN SHAFT
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 77233001100 MAIN SHAFT CPL. |
3 042 Kč | |
| 2 | 78033001110 BUSHING |
211 Kč | |
| 3 | 0405242812 NEDDLE BEAR. K24X28X11,9 DIV. |
103 Kč | |
| 4 | 54833005100 IDLER GEAR 5.G, Z=25 |
1 604 Kč | |
| 5 | 50333043000 STOP DISC 25,2X32X1 |
73 Kč | |
| 6 | 77033022000 AXIAL-CIRCLIP 25X1,65 |
82 Kč | |
| 7 | 79233003100 SLIDING GEAR 3 RD. |
2 160 Kč | |
| 8 | 59033030000 STOP DISC 25,2X32X1,5 |
58 Kč | |
| 9 | 54833004100 IDLER GEAR 4 TH. |
1 682 Kč | |
| 10 | 0405222613 NEEDLE BEAR. K 22X26X13 TN |
132 Kč | |
| 11 | 54833002100 SOLID GEAR 2ND G. 16-T \'\'2S16\'\' |
791 Kč | |
| 12 | 77233015000 DISK 20,2X32X1,3 |
60 Kč | |
| 13 | 0625062054 BALL BEARING 6205 C3 NTN |
292 Kč | |
| 14 | 75030085000 RETAINING PLATE F. CS BEARING |
86 Kč | |
| 15 | 0019050121S INT. TORX FLAT HEAD M5X12 T25 |
28 Kč | |
| 16 | 0625160040 GROOVED BALL BEAR. TM 16004 C3 |
310 Kč |
