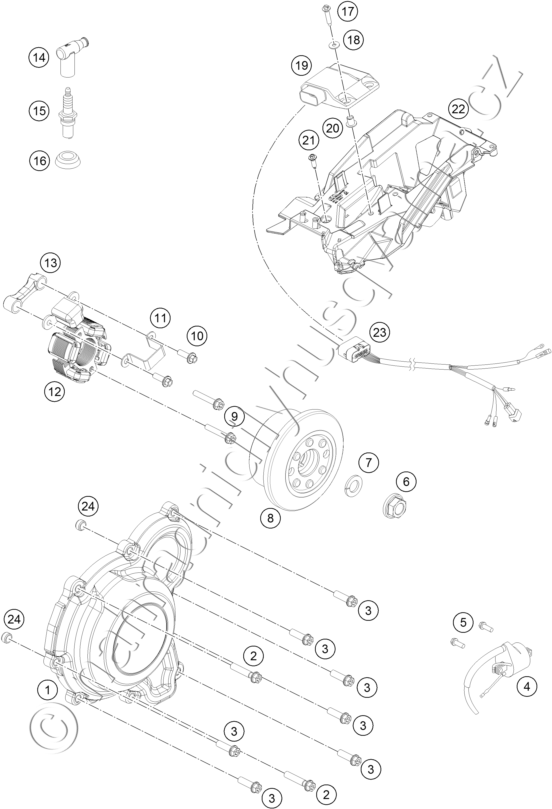

Díly pro IGNITION SYSTEM
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 55430602000 INNER IGNITION COVER HQV |
541 Kč | |
| 2 | 0025060256 HH COLLAR SCREW M6X25 TX30 |
29 Kč | |
| 3 | 0025060206 HH COLLAR SCREW M6X20 TX30 |
29 Kč | |
| 4 | 59039006000 IGNITIONCOIL \'\'IG5128\'\' |
934 Kč | |
| 5 | 0025050166 HH COLLAR SCREW M5X16 TX30 |
20 Kč | |
| 6 | 49030021000 COLLAR NUT M12X1 R/S |
100 Kč | |
| 7 | 50230029012 LOCKING RING VSK 12 |
25 Kč | |
| 8 | 55439005100 ROTOR |
5 567 Kč | |
| 9 | 0912050253 AH SCREW DIN0912-M 5X25 |
17 Kč | |
| 10 | 0014050163 HH COLLAR SCREW M 5X16 WS=6 |
47 Kč | |
| 11 | 50439004010 PICKUP BRACKET |
63 Kč | |
| 12 | 55439004000 STATOR |
4 425 Kč | |
| 13 | 50439013100 DISTANCE UNIT |
82 Kč | |
| 14 | 47039090000 SPARK PLUG CAP NGK REINFORC.04 |
481 Kč | |
| 15 | 54331093410 SPARK PLUG NGK BR8ECM |
255 Kč | |
| 16 | 50231012000 SEALING CUP FOR SPARK PLUG |
65 Kč | |
| 17 | 0017060305 SPECIAL SCREW K60X30 WS=6 |
21 Kč | |
| 18 | 0021050003 WASHER DIN 9021 A - 5.3 |
17 Kč | |
| 19 | 55439031000 ELECTRONIC CASE 250SX 17 |
6 186 Kč | |
| 20 | 60308006000 COLLAR BUSHING 6,2X9,2X15X12,5 |
53 Kč | |
| 21 | 0017060206 SCREW F. PLASTIC K60X20AL SW6 |
34 Kč | |
| 22 | 25011055000 BATTERY BOX |
478 Kč | |
| 23 | 54839032200 WIRING HARNESS FOR CDI 2-ST.07 |
1 294 Kč | |
| 24 | 45230024000 DOWEL 9,8X7X5.5 |
53 Kč |
