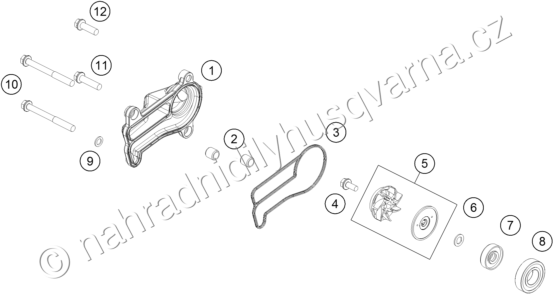

Díly pro WATER PUMP
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 55435052000 WATER PUMP COVER |
730 Kč | |
| 2 | 49030090100 DOWEL 9,8 X7X10 |
52 Kč | |
| 3 | 55435053000 GASKET WATER PUMP COVER |
98 Kč | |
| 4 | 0014050123 HH COLLAR SCREW M 5X12 WS=6 |
29 Kč | |
| 5 | 79235055044 WATER PUMP WHEEL CPL. |
222 Kč | |
| 6 | 50435049000 PREFORMED WASHER |
94 Kč | |
| 7 | 0760082472 SHAFT SEAL RING 8X24X7 A DUO |
61 Kč | |
| 8 | 0625160020 BALL BEARING 16002 C3 |
284 Kč | |
| 9 | 0603061001 CU-SEAL RING DIN7603-6X10X1 |
20 Kč | |
| 10 | 0025060606 HH COLLAR SCREW M6X60 TX30 |
29 Kč | |
| 11 | 0025060256 HH COLLAR SCREW M6X25 TX30 |
29 Kč | |
| 12 | 0025060206 HH COLLAR SCREW M6X20 TX30 |
29 Kč |
