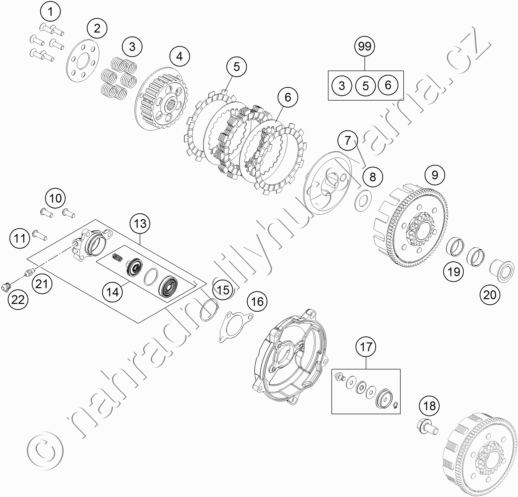

Díly pro CLUTCH
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 0991060202 FLAT HEAD DIN7991-M 6X20 |
20 Kč | |
| 2 | 46032006000 SPRING RETAINER 25X63,5X2 |
184 Kč | |
| 3 | 46232005044 CLUTCH SPRING KIT |
329 Kč | |
| 4 | 46232002000 CLUTCH HUB |
1 238 Kč | |
| 5 | 46032011044 LINING DISK KIT |
1 738 Kč | |
| 6 | 46032010000 INTERMEDIATE DISK STEEL |
89 Kč | |
| 7 | 46232003000 CLUTCH PRESSURE CAP |
962 Kč | |
| 8 | 46232012000 STOP DISC 17,2X32X1,5 |
433 Kč | |
| 9 | 46232000044 PRIMARY DRIVE WITH CLUTCH CAGE |
6 601 Kč | |
| 10 | 0738060161 FLAT HEAD SCREW ISO7380 M6X16 |
15 Kč | |
| 11 | 0738060201 FLAT HEAD SCREW ISO7380 M6X20 |
15 Kč | |
| 13 | 47132061044 OUTPUT CYLINDER CPL. |
4 347 Kč | |
| 14 | 47132066000 PISTON CPL. |
716 Kč | |
| 15 | 0770031018 O-RING 31,47X1,78 |
20 Kč | |
| 16 | 59032065000 GASKET FOR SLAVE CYLINDER |
45 Kč | |
| 17 | 46232057000 PRESSURE PIECE CPL. |
536 Kč | |
| 18 | 46132019000 HH COLLAR SCREW M10X20 |
154 Kč | |
| 19 | 0405222610 NEEDLE BEARING K 22X26X10 A |
175 Kč | |
| 20 | 46232015000 INNER RING WITH COLLAR |
554 Kč | |
| 21 | 47013085000 BLEEDER SCREW M8X1 |
178 Kč | |
| 22 | 47013021000 CAP FOR BLEEDER SCREW |
116 Kč | |
| 99 | 46232010010 CLUTCH KIT 65 SX 09-14 |
2 367 Kč |
