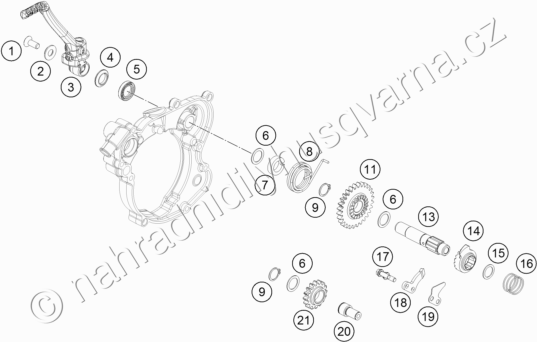

Díly pro KICK STARTER
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 0019080206 COUNTER-SUNK SCREW ISA45 M8X20 |
33 Kč | |
| 2 | 54633037000 WASHER 8MM GALVANIZED |
103 Kč | |
| 3 | 46333070044 KICK STARTER CPL. |
2 284 Kč | |
| 4 | 46233038000 SPACER SLEEVE |
119 Kč | |
| 5 | 0760172860 SHAFT SEAL RING 17X28X6B NBR |
53 Kč | |
| 6 | 50333030000 STOP DISK 17,2X24X1 |
37 Kč | |
| 7 | 50333055000 DRIVING HUB 125/200\'98 |
50 Kč | |
| 8 | 50333054000 KICKSTARTER SPRING 2,6MM \'98 |
146 Kč | |
| 9 | 0471170010 CIRCLIP DIN0471-17X1 |
17 Kč | |
| 11 | 77033051000 KICKSTART. GEAR 28-T 05 |
1 413 Kč | |
| 13 | 50333050000 KICKSTARTER SHAFT 125/200\'98 |
1 046 Kč | |
| 14 | 50333052000 KICKSTARTER RATCHET |
1 346 Kč | |
| 15 | 0988162210 THRUST WASHER DIN0988-16X22X1 |
18 Kč | |
| 16 | 50333056000 SPRING 1,4MM \'98 |
36 Kč | |
| 17 | 0025060166 HH COLLAR SCREW M6X16 TX30 |
28 Kč | |
| 18 | 50333069000 STOP MET.SHEET 4MM 125/200\'98 |
252 Kč | |
| 19 | 46233069001 COVER PLATE |
65 Kč | |
| 20 | 46233018000 BEARING PIN IDLER GEAR |
347 Kč | |
| 21 | 46233053016 INTERMEDIATE STARTING GEAR |
1 073 Kč |
