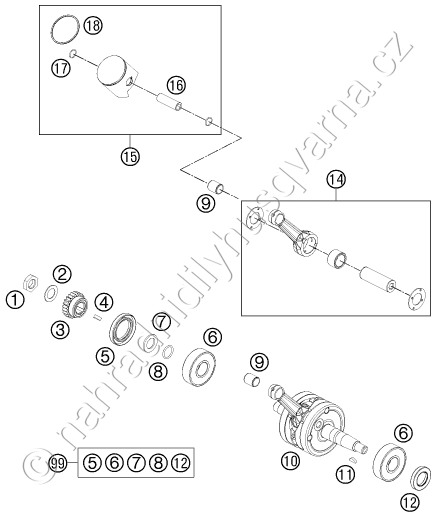

Díly pro CRANKSHAFT, PISTON
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 46030029000 HH NUT 14X1,25X7 WS=22 |
72 Kč | |
| 2 | 83061015000 STOP DISK 15,2X25X1 MM |
31 Kč | |
| 3 | 46232023023 PRIMARY PINION LOOSE |
2 304 Kč | |
| 4 | 0888040050 WOODRUFF KEY DIN 6888 4X5X13 |
21 Kč | |
| 5 | 0760304772 SH.SEAL RING 30X47X7 BSL VITON |
294 Kč | |
| 6 | 46030082200 GROOVED BALL BEAR.20X52X15 NTN |
440 Kč | |
| 7 | 46230016000 SPACER WASHER - CRANKSHAFT |
87 Kč | |
| 8 | 0770160021 O-RING 16,00X2,00 VITON |
25 Kč | |
| 9 | 46030034000 NEEDLE BEAR.PISTONPIN 12X15X17 |
453 Kč | |
| 10 | 46230018000 CRANKSHAFT CPL. |
15 894 Kč | |
| 11 | 0888030050 WOODRUFF KEY DIN6888-3X5X13 |
20 Kč | |
| 12 | 47030076100 SEAL SHAFT RING 20X35X6 BTSL |
143 Kč | |
| 14 | 46230015000 CONNECT. ROD REPAIR SET |
4 697 Kč | |
| 15 | 46230007000 I PISTON CPL. I |
2 925 Kč | |
| 15 | 46230007000 II PISTON CPL. II |
2 925 Kč | |
| 16 | 46030033000 PISTON PIN 12X38 |
221 Kč | |
| 17 | 45230074000 CIRCLIP 09 |
25 Kč | |
| 18 | 46030030500 PISTON RING 45MM 65CCM |
735 Kč | |
| 99 | 00050002306 CRANKSHAFT REP. KIT 09-15 |
1 445 Kč |
