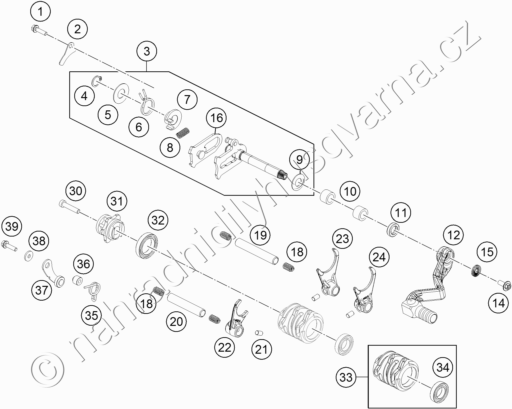

Díly pro SHIFTING MECHANISM
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 0025050126 HH COLLAR SCREW M5X12 TX30 |
36 Kč | |
| 2 | 46234005110 SHIFTING SHAFT FENDER RET. PL. |
65 Kč | |
| 3 | 46234005144 SHIFT SHAFT CPL. |
2 050 Kč | |
| 4 | 0471140100 RETAINING RING DIN 471 14X1 |
5 Kč | |
| 5 | 54634050000 STOP DISK 14X30X1 |
29 Kč | |
| 6 | 54834014000 RETURN SPRING 03 |
66 Kč | |
| 7 | 54634020000 SPRING GUIDE |
116 Kč | |
| 8 | 56534013100 TENSIONING SPRING 0,8MM |
44 Kč | |
| 9 | 49033013000 STOP DISK 12,1X25X1 |
46 Kč | |
| 10 | 46034027000 NEEDLE BEARING 12X18X12 2002 |
107 Kč | |
| 11 | 0760122050 SHAFT SEAL RING 12X20X5 B |
68 Kč | |
| 12 | 46234031044 SHIFTING LEVER CPL. |
1 227 Kč | |
| 14 | 0024060156S HH COLLAR SCREW M6X15 TX30 |
12 Kč | |
| 15 | 50233041500 PAIR NORDLOCK WASHER M6 |
39 Kč | |
| 16 | 46234008044 SLIDING PLATE CPL. |
233 Kč | |
| 18 | 58038023200 PRESSURE SPRING 0,9MM |
52 Kč | |
| 19 | 46234019000 SHIFTING RAIL COUNTER SHAFT |
313 Kč | |
| 20 | 46234020000 SHIFTING RAIL MAIN SHAFT |
257 Kč | |
| 21 | 0402061000 NEEDLE ROLLER ZRB 6X10 |
113 Kč | |
| 22 | 46234001000 SHIFT FORK MAIN SHAFT |
966 Kč | |
| 23 | 46234002000 SHIFT FORK COUNTERSHAFT R/S |
966 Kč | |
| 24 | 46234003000 SHIFT FORK COUNTERSHAFT Ll/S |
966 Kč | |
| 30 | 0912060303 AH SCREW DIN0912-M 6X30 |
23 Kč | |
| 31 | 46234015044 SHIFT DRUM LOCATING CPL. |
738 Kč | |
| 32 | 0625618050 BALL BEARING 61805 C3 |
601 Kč | |
| 33 | 46234012033 SHIFT ROLLER CPL. |
1 687 Kč | |
| 34 | 0625069034 BALL BEARING 6903 C4 |
313 Kč | |
| 35 | 54834023000 LOCKING LEVER SPRING 03 |
69 Kč | |
| 36 | 54634052300 SLEEVE FOR LOCKING LEVER |
63 Kč | |
| 37 | 50334024144 LOCATING LEVER CPL. 08 |
238 Kč | |
| 38 | 0349000050 WASHER DIN7349-5X15X2 |
17 Kč | |
| 39 | 0025050206 HH COLLAR SCREW M5X20 TX30 |
20 Kč |
