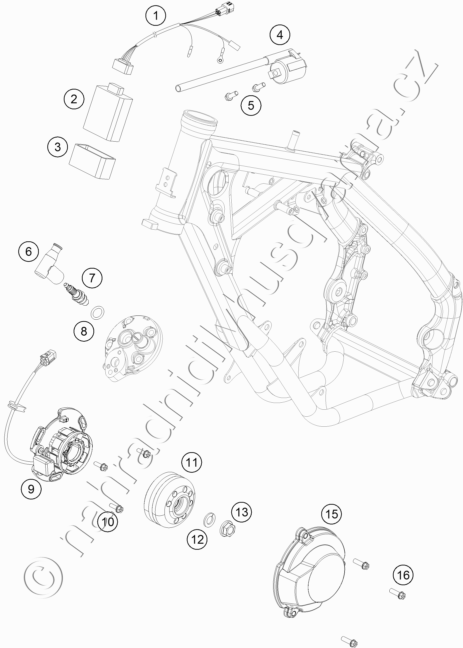

Díly pro IGNITION SYSTEM
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 46239095000 WIRING HARNESS CDI 65 SX 2009 |
627 Kč | |
| 2 | 46239031200 CDI 65SX 2015 |
4 108 Kč | |
| 3 | 46139030000 RUBBER BR. DIGI.BOX 65SX 2003 |
138 Kč | |
| 4 | 59039006000 IGNITIONCOIL \'\'IG5128\'\' |
934 Kč | |
| 5 | 0025060166 HH COLLAR SCREW M6X16 TX30 |
28 Kč | |
| 6 | 46239090000 SPARK PLUG CONNECTOR |
259 Kč | |
| 7 | 45239093000 SPARK PLUG LR8B |
318 Kč | |
| 8 | 0770012030 O-RING 12,00X3,0 VITON 75 |
44 Kč | |
| 9 | 46239004000 STATOR |
2 713 Kč | |
| 10 | 0025050166 HH COLLAR SCREW M5X16 TX30 |
20 Kč | |
| 11 | 46239005000 ROTOR |
2 713 Kč | |
| 12 | 50230029012 LOCKING RING VSK 12 |
25 Kč | |
| 13 | 49030021000 COLLAR NUT M12X1 R/S |
100 Kč | |
| 15 | 46230602000 IGNITION COVER |
1 269 Kč | |
| 16 | 0025060206 HH COLLAR SCREW M6X20 TX30 |
29 Kč |
