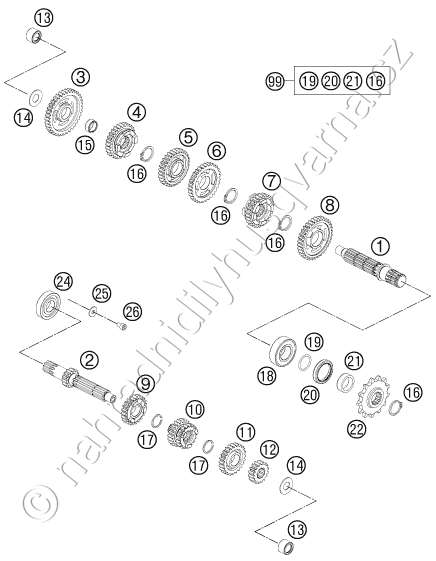

Díly pro TRANSMISSION
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 46233010000 COUNTERSHAFT |
2 048 Kč | |
| 2 | 46233001000 MAIN SHAFT 13-T |
2 048 Kč | |
| 3 | 46233011000 IDLER GEAR 1.G. |
1 290 Kč | |
| 4 | 46233015000 SLIDING GEAR 5.G. |
1 310 Kč | |
| 5 | 46233014000 IDLER GEAR 4.G |
1 092 Kč | |
| 6 | 46233013100 IDLER GEAR 3.G |
1 278 Kč | |
| 7 | 46233016000 SLIDING GEAR 6.G. |
1 310 Kč | |
| 8 | 46233012000 IDLER GEAR 2.G |
1 391 Kč | |
| 9 | 46233005000 IDLER GEAR 5.G. |
862 Kč | |
| 10 | 46233003000 SLIDING GEAR 3/4. G |
1 647 Kč | |
| 11 | 46233006000 IDLER GEAR 6.G. |
906 Kč | |
| 12 | 46233002000 SOLID GEAR 2.G |
600 Kč | |
| 13 | 0618121912 NEEDLE BUSH NK1212 |
377 Kč | |
| 14 | 49033013000 STOP DISK 12,1X25X1 |
46 Kč | |
| 15 | 46033020000 NEEDLE BEARING 14X18X8 |
282 Kč | |
| 16 | 49033091000 CIRCLIP AS20X1,75 |
28 Kč | |
| 17 | 46233022000 LOCK RING |
25 Kč | |
| 18 | 46033028000 GROOVED BALL BEARING 20X42X12 |
561 Kč | |
| 19 | 0770020020 O-RING 20X2 VITON |
55 Kč | |
| 20 | 0760263561 SHAFT SEAL RING 26X35X6BSL NB |
73 Kč | |
| 21 | 46233030000 DISANCESPACER F. SPROCKET |
231 Kč | |
| 22 | 46233029013 CHAIN SPROCKET 13-T. |
360 Kč | |
| 22 | 46233029014 CHAIN SPROCKET 14-T. |
360 Kč | |
| 24 | 0625982030 BALL BEARING 98203 KSE C3 |
1 278 Kč | |
| 25 | 0021050003 WASHER DIN 9021 A - 5.3 |
17 Kč | |
| 26 | 0912050083 SHCS DIN 912 M5X8 |
17 Kč | |
| 99 | 00050000947 COUNTER SHAFT REP.KIT 65 SX |
347 Kč |
