Díly pro WATER PUMP

Číslo dílu
na schématu
Kód dílu
Název dílu
Cena za kus
vč. DPH
Doporučený
počet
1 0025060086
HH COLLAR SCREW M6X8 TX30
29 Kč
2 0603061001
CU-SEAL RING DIN7603-6X10X1
20 Kč
3 0025060506
HH COLLAR SCREW M6X50 TX30
29 Kč
4 0025060126
HH COLLAR SCREW M6X12 TX30
29 Kč
5 45235052000
WATERPUMP COVER
773 Kč
6 45235053000
WATER PUMP COVER GASKET
98 Kč
7 49030090100
DOWEL 9,8 X7X10
52 Kč
8 0014050123
HH COLLAR SCREW M 5X12 WS=6
29 Kč
9 54835005000
WATER PUMP WHEEL 07
66 Kč
10 0760082472
SHAFT SEAL RING 8X24X7 A DUO
61 Kč
11 50335054150
WATER PUMP SHAFT
377 Kč
12 0625060001
BALL BEARING 6000/C3
203 Kč
13 45235054028
DRIVE WHEEL
89 Kč
14 0625006087
GROOVED BALL BEAR. 608 2RS C3
244 Kč
99 54835055010
WATER PUMP REP. KIT 50/65 SX
722 Kč

Další schémata

CARBURETOR CARBURETOR CLUTCH CLUTCH CLUTCH COVER CLUTCH COVER COOLING SYSTEM COOLING SYSTEM CRANKSHAFT, PISTON CRANKSHAFT, PISTON CYLINDER, CYLINDER HEAD CYLINDER, CYLINDER HEAD ENGINE CASE ENGINE CASE IGNITION SYSTEM IGNITION SYSTEM KICK STARTER KICK STARTER REED VALVE CASE REED VALVE CASE SHIFTING MECHANISM SHIFTING MECHANISM TRANSMISSION TRANSMISSION WATER PUMP WATER PUMP

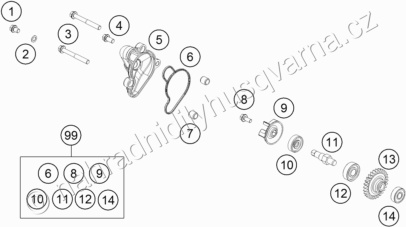

WATER PUMP

Zvětšit schéma WATER PUMP
WATER PUMP
