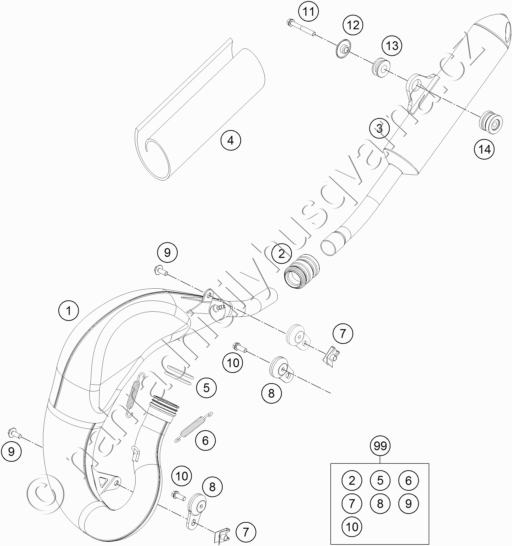

Díly pro EXHAUST SYSTEM
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 46305007000 EXHAUST PIPE CPL. |
5 448 Kč | |
| 2 | 54605057000 RUBBER SLEEVE D=21MM/23MM \'93 |
467 Kč | |
| 3 | 46305079000 SILENCER 65 SX |
1 875 Kč | |
| 4 | 45105079056 ROCKWOOL PREFOMED 50 2002 |
515 Kč | |
| 5 | 0770350030 O-RING 35,00X3,00 VITON |
65 Kč | |
| 6 | 50305016000 TEN.SPRING L=62MM EY.MOVEABLE |
98 Kč | |
| 7 | 54603048100 CLIP NUT M6 |
87 Kč | |
| 8 | 50305012000 SWINGELEMENT FOR EXHAUST PIPE |
257 Kč | |
| 9 | 0024060156 HH COLLAR SCREW M6X15 TX30 |
29 Kč | |
| 10 | 0025060166 HH COLLAR SCREW M6X16 TX30 |
28 Kč | |
| 11 | 0025060456 HH COLLAR SCREW M6X45 TX30 |
29 Kč | |
| 12 | 46205169000 BUSHING 7.5X12X28X7.6 |
66 Kč | |
| 13 | 77205068000 DAMP. COMPON. BLACK |
69 Kč | |
| 14 | 46205069100 BUSHING 7.5X12X28X23.6 |
150 Kč | |
| 99 | 00050000812 EXHAUST HARDWARE KIT MINI |
1 280 Kč |
