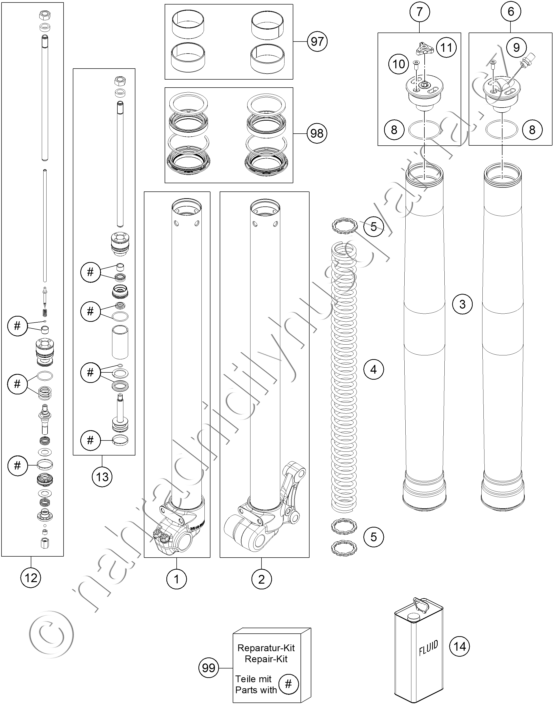

Díly pro FRONT FORK DISASSEMBLED
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 35480455S4 AXLE CLAMP KTM 65SX R/S. CPL. |
3 738 Kč | |
| 2 | 35480466S3 AXLE CLAMP KTM 65SX L/S CPL. |
3 738 Kč | |
| 3 | 35480564 OUTER TUBE L=465 |
2 590 Kč | |
| 4 | 95010044S SPRING 2,8N/MM D3,6 SET |
3 382 Kč | |
| 5 | 35480497 WASHER 22X30X2.5 |
44 Kč | |
| 6 | 35480548S SCREW CAP M38X1,5 AIR CPL. |
1 280 Kč | |
| 7 | 35480507S1 SCREW CAP M38X1,5 AIR REBOUND |
1 280 Kč | |
| 8 | 46180581 O-RING 35X1.5 NBR70 |
20 Kč | |
| 9 | 48601494S VALVE M8X1 INCL. SCREW CAP |
979 Kč | |
| 10 | 600003 COUNTER SUNK SCREW M4X10 TORX |
26 Kč | |
| 11 | 48601118S ADJUSTER REB. RED CPL. |
68 Kč | |
| 12 | 35480551S4 PISTON ROD SX 65 CPL. RIGHT |
6 354 Kč | |
| 13 | 35480551S5 PISTON ROD SX 65 CPL. LEFT |
6 354 Kč | |
| 14 | 48601166S1 FORK OIL SAE4 5L |
2 949 Kč | |
| 97 | RP10006 BUSHING KIT 35MM |
640 Kč | |
| 98 | RP10007 GASKET KIT 35MM RED |
1 812 Kč | |
| 99 | RP10008 REPAIR KIT 50+65SX AIR 2017 |
631 Kč |
