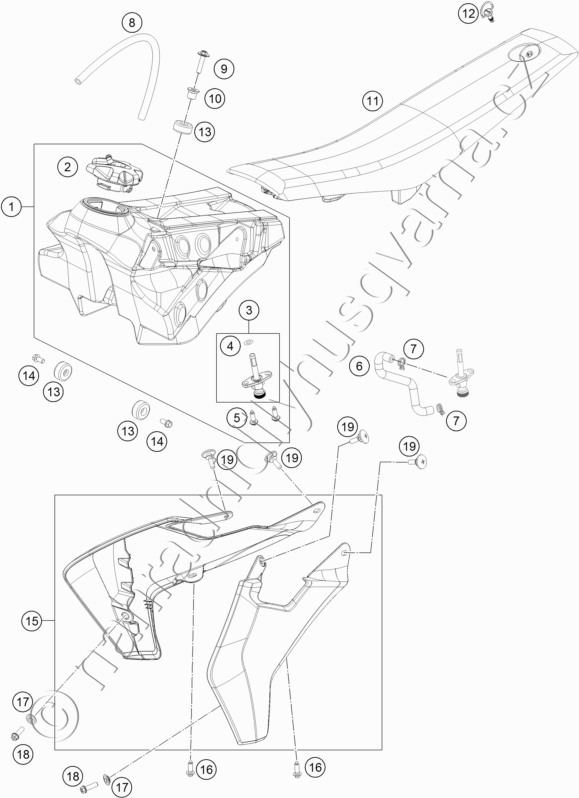

Díly pro TANK, SEAT, COVER
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 23307013033 TANK COMPLETE |
4 743 Kč | |
| 2 | 7810700804455 TANK PLUG CPL. 14 |
478 Kč | |
| 3 | 58507003200 FUEL COCK CPL. |
522 Kč | |
| 4 | 0770020130 O-RING 1,78x10,82x14,38 2-013 |
20 Kč | |
| 5 | 0017060205 SCREW FOR PLASTIC K60X20 SW6 |
29 Kč | |
| 6 | 46307016000 FUEL HOSE 65SX 2016 |
295 Kč | |
| 7 | 58007117000 YDNAC-CLAMP 10107 10MM |
21 Kč | |
| 8 | 78007000270 PVC-HOSE 5,6X10X270MM |
57 Kč | |
| 9 | 0024060273 COLLAR SCREW M6X27 TX |
49 Kč | |
| 10 | 77307026000 TANK BUSHING 07 |
52 Kč | |
| 11 | 23307040000 SEAT |
2 014 Kč | |
| 12 | 45007040051 QUICK RELEASE CPL. 50 SXR \'97 |
356 Kč | |
| 13 | 50307014000 TANK ROLLER 12X26X12 \'98 |
154 Kč | |
| 14 | 0025060126 HH COLLAR SCREW M6X12 TX30 |
29 Kč | |
| 15 | 2330805400028A SPOILER-SET TC-65 17 |
2 564 Kč | |
| 16 | 0017060206 SCREW F. PLASTIC K60X20AL SW6 |
34 Kč | |
| 17 | 79608052000 BUSH 6X11X16X5 MM |
52 Kč | |
| 18 | 0025060206 HH COLLAR SCREW M6X20 TX30 |
29 Kč | |
| 19 | 50307011000 SCREW SEAT FASTENING D=6X23/18 |
63 Kč |
