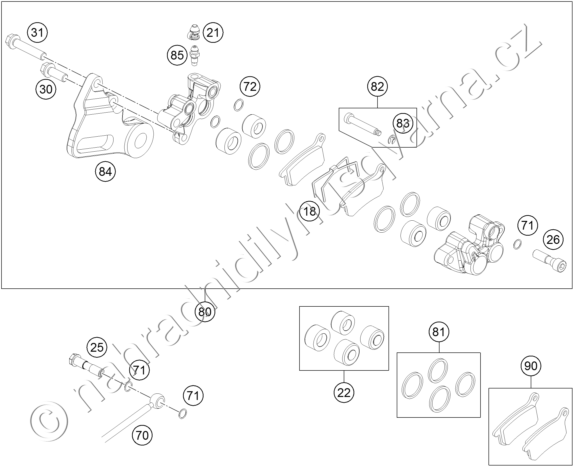

Díly pro REAR BRAKE CALIPER
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 18 | 46213018000 RETAINING SPRING 65 SX |
94 Kč | |
| 21 | 47013021000 CAP FOR BLEEDER SCREW |
116 Kč | |
| 22 | 47013083100 REPAIR KIT BRAKEPISTON |
425 Kč | |
| 25 | 47013225000 HOLLOW SCREW REAR 85 SX 2003 |
312 Kč | |
| 26 | 47013325000 HOLLOW SCREW REAR 85 SX 2003 |
312 Kč | |
| 30 | 0025080206 HH COLLAR SCREW M8X20 TX40 |
33 Kč | |
| 31 | 0025080406 HH COLLAR SCREW M8X40 TX40 |
33 Kč | |
| 70 | 46213070000 BRAKE HOSE REAR 65 SX 09 |
1 729 Kč | |
| 71 | 0770080019 O-RING 8,00X1,00 FORMULA |
45 Kč | |
| 72 | 0770100019 O-RING 10X1 EPDM |
84 Kč | |
| 80 | 46313080000 BRAKE CALIPER R. CPL. 65SX 16 |
7 638 Kč | |
| 81 | 47013081000 REPAIR KIT SEAL RING REAR 03 |
239 Kč | |
| 82 | 47013425000 AH SCREW + CIRCLIP 85/105 |
263 Kč | |
| 83 | 0799040009 TAB WASHER DIN6799-RA 4,0 |
29 Kč | |
| 84 | 46313075000 BRAKE CALIPER REAR SUPPORT 16 |
1 424 Kč | |
| 85 | 47013085000 BLEEDER SCREW M8X1 |
178 Kč | |
| 90 | 47013090200 BRAKE PADS REAR SINTER 85SX 08 |
1 048 Kč |
