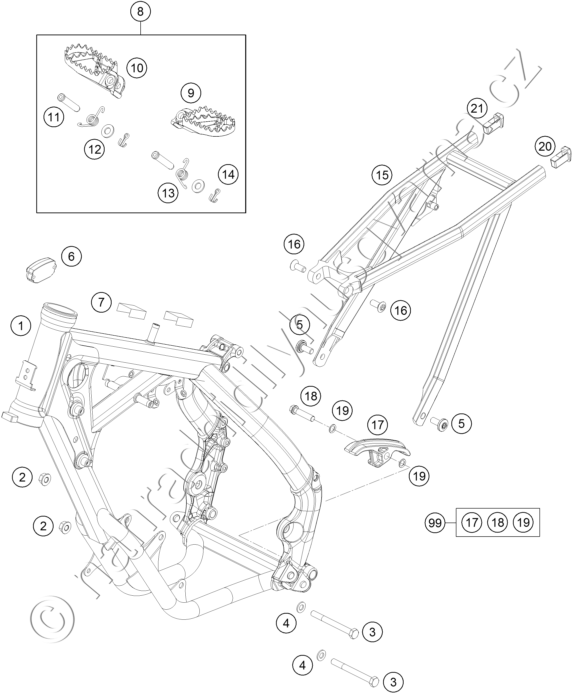

Díly pro FRAME
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 4630300100028 FRAME \'\'463P3\'\' WHITE |
27 052 Kč | |
| 2 | 06923080003 HEX NUT EN 1661 M8 WS13 |
23 Kč | |
| 3 | 0931080805S HH SCREW DIN931 M8X80 SS |
42 Kč | |
| 4 | 0125080003 WASHER DIN 125 A -8.4 |
10 Kč | |
| 5 | 79003003000 SPECIAL SCREW M8X18 TORX45 SS |
25 Kč | |
| 6 | 78112920000 HOUR METER KTM |
1 710 Kč | |
| 7 | 50307012000 ADH. FOIL TRANSP. 80X80 MM 04 |
39 Kč | |
| 8 | 47103040033 FOOTREST CPL. 14 |
1 822 Kč | |
| 9 | 47103040000 FOOTREST L/S |
666 Kč | |
| 10 | 47103041000 FOOTREST R/S |
666 Kč | |
| 11 | 54803044000 BOLT FOR FOOT PED 03 |
203 Kč | |
| 12 | 0125100003 WASHER DIN 125 A 10.5 |
13 Kč | |
| 13 | 54603041000 FOOTREST SPRING L/S & R/S |
71 Kč | |
| 14 | 0094032250 PIN DIN 0094-3.2X25 NIRO |
5 Kč | |
| 15 | 46303002000 SUBFRAME 65SX 2016 |
6 983 Kč | |
| 16 | 0019080206S FLAT HEAD SCREW M. ISA45 M8X20 |
33 Kč | |
| 17 | 77303053000 CHAIN SLIDING PIECE BELOW 07 |
195 Kč | |
| 18 | 0025080356 HH COLLAR SCREW M8X35 TX40 |
33 Kč | |
| 19 | 36003014000 LOCK WASHER 8MM |
15 Kč | |
| 20 | 78103002010 SUB FRAME APPLICATION LEFT |
185 Kč | |
| 21 | 78103002020 SUB FRAME APPLICATION RIGHT |
185 Kč | |
| 99 | 77303053110 CHAIN SLIDING KIT BELOW 09-15 |
195 Kč |
