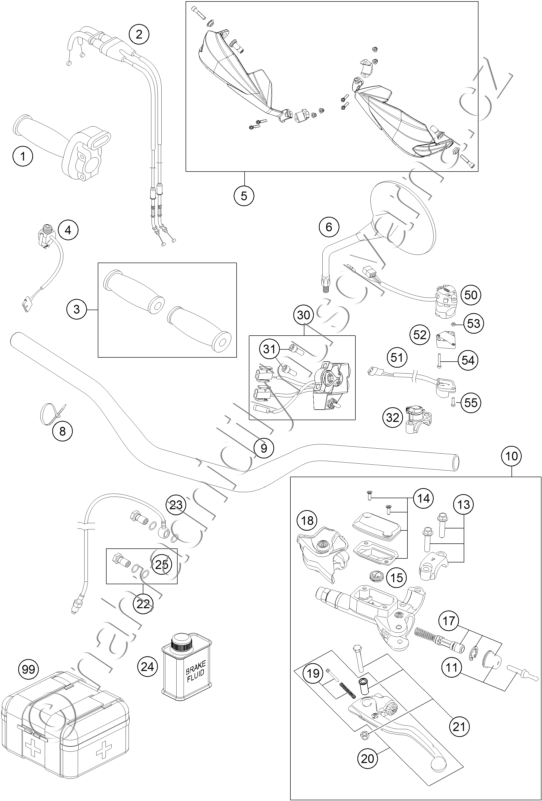

Díly pro HANDLEBAR, CONTROLS
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 76402010000 THROTTLE GRIP |
1 339 Kč | |
| 2 | 77302091200 THROTTLE CABLE 4T. |
2 085 Kč | |
| 3 | 58502139044 RUBBER GR. PRO GRIP 06 |
517 Kč | |
| 4 | 63011074000 STARTER BUTTON 06 |
640 Kč | |
| 5 | 7800207910004 HANDGUARDS CLOSED ORANGE |
1 447 Kč | |
| 6 | 58412040100 MIRROR, LEFT/RIGHT |
1 148 Kč | |
| 8 | 44011076200 CABLE TIE 200/3,6MM BLACK |
10 Kč | |
| 9 | 7640210100030 HANDLEBAR BLACK |
3 823 Kč | |
| 10 | 54802030144 MASTER CYLINDER CPL. |
4 509 Kč | |
| 11 | 54802046000 PUSH ROD CPL. |
414 Kč | |
| 13 | 54802005100 CLAMP CPL. 06 |
405 Kč | |
| 14 | 5480200310030 COVER HYD. CLUTCH CPL. 2014 |
605 Kč | |
| 15 | 54802051000 VALVE |
318 Kč | |
| 17 | 54802032000 REP. KIT PISTON 06 |
831 Kč | |
| 18 | 54802037000 PROTECTION CAP 06 |
370 Kč | |
| 19 | 54802052000 BOLT KPL. |
533 Kč | |
| 20 | 54802031000 CLUTCH LEVER CPL. BREMBO 06 |
836 Kč | |
| 21 | 54802038100 LEVER SCREW CPL. 06 |
521 Kč | |
| 22 | 59032062000 HOLLOW SCREW + COPPER GASKET |
568 Kč | |
| 23 | 78132063000 CLUTCH PIPE |
1 503 Kč | |
| 24 | 00062030000 BRAKE FLUID DOT5.1 0,25L |
358 Kč | |
| 25 | 59413013050 COPPER GASKET |
127 Kč | |
| 30 | 76412175044 ROADBOOK SWITCH CPL. |
10 815 Kč | |
| 31 | 0912060163 AH SCREW DIN0912-M 6X16 |
17 Kč | |
| 32 | 76411006044 FUEL PUMP SWITCH |
3 771 Kč | |
| 50 | 76411070100 H.LIGHT SWITCH |
1 437 Kč | |
| 51 | 50311029000 FLASHER SWITCH CEV \'98 |
536 Kč | |
| 52 | 13011070060 ADAPTER FOR FLASHER SWITCH \'98 |
71 Kč | |
| 53 | 0934040003 HEXAGON NUT DIN0934-M 4 |
17 Kč | |
| 54 | 0084040223 CYL.HEAD SCREW DIN0084-M 4X22A |
17 Kč | |
| 55 | 0985040163 FLAT HEAD SCREW DIN7985-M 4X16 |
17 Kč | |
| 99 | 76212002000 |
Na dotaz | 1 |
