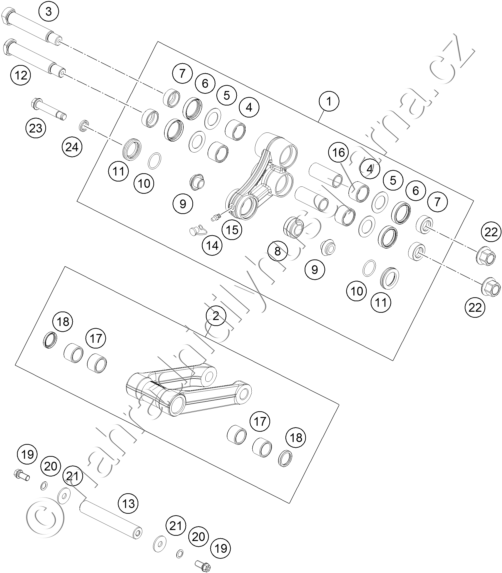

Díly pro PRO LEVER LINKING
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 76403132044 CANTILEVER CPL. |
6 032 Kč | |
| 2 | 76403183044 PULL ROD CPL. |
5 721 Kč | |
| 3 | 76403032010 BOLT FOR CANTILEVER |
4 122 Kč | |
| 4 | 54603097000 NEEDLE BUSH HK 2016 |
221 Kč | |
| 5 | 59033080000 SHIM 20X32X1 |
41 Kč | |
| 6 | 0760253270 RADIAL SHAFT SEAL 25X32X7 |
60 Kč | |
| 7 | 77204080130 BUCKET SHAFT SEAL RING 25X11 |
203 Kč | |
| 8 | 76203083050 SPHERICAL BEARING INA GE14BW |
1 230 Kč | |
| 9 | 76403085000 COLLAR BUSHING |
1 248 Kč | |
| 10 | 0770021020 O-RING 21,00X2,00 NBR70 |
17 Kč | |
| 11 | 76203032020 SUPPORT FOR SEAL RING |
552 Kč | |
| 12 | 76403032015 BOLT FOR CANTILEVER |
4 122 Kč | |
| 13 | 76203083010 PULL ROD ANCHOR BOLT |
4 086 Kč | |
| 14 | 53003099000 CAP WITH LOOP RED |
33 Kč | |
| 15 | 72003035000 GREASE FITTING M6 STRAIGHT |
23 Kč | |
| 16 | 54603081000 BUSHING SLEEVE 15 X 20 X 48 |
406 Kč | |
| 17 | 56503195100 NEEDLE BEARING HK 1816 |
121 Kč | |
| 18 | 0760182442 SHAFT SEAL RING 18X24X4 |
66 Kč | |
| 19 | 0025080166 HH COLLAR SCREW M8X16 TX40 |
33 Kč | |
| 20 | 36003014000 LOCK WASHER 8MM |
15 Kč | |
| 21 | 0021080003 WASHER DIN9021-A 8,4 |
17 Kč | |
| 22 | 54603015000 SELF LOCKING NUT M14X1,5 WS=19 |
71 Kč | |
| 23 | 77204089000 HH COLLAR SCREW M10X52 SW13 |
57 Kč | |
| 24 | 50233041100 PAIR OF WASHERS M10 NORDLOCK |
61 Kč |
