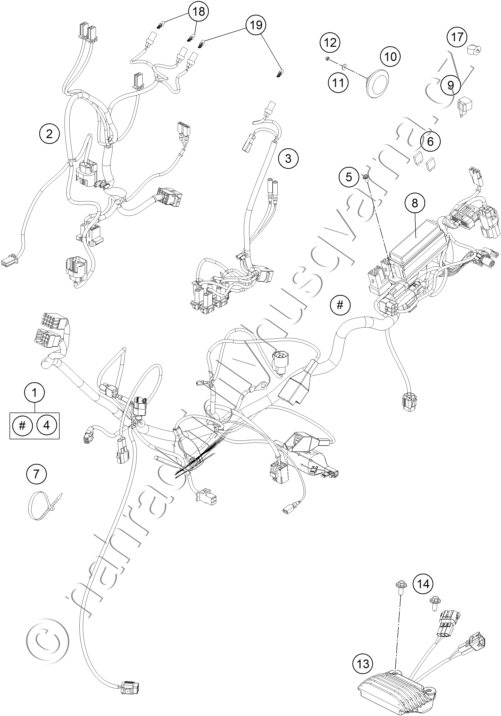

Díly pro WIRING HARNESS
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 76411075100 WIRING HARNESS |
14 614 Kč | |
| 2 | 76411082000 WIRING HARNESS LIGHT FRONT |
2 295 Kč | |
| 3 | 76411078100 WIRING HARNESS INSTRUMENTS |
2 295 Kč | |
| 5 | 0025050106 HH COLLAR SCREW M5X10 TX30 |
20 Kč | |
| 6 | 58011109110 FUSE 10 A 2000 |
63 Kč | |
| 6 | 58011109115 FUSE 15 A |
63 Kč | |
| 7 | 44011076140 CABLE TIE 140/2,5MM BLACK |
10 Kč | |
| 7 | 44011076200 CABLE TIE 200/3,6MM BLACK |
10 Kč | |
| 7 | 76311093200 CABLE TIE 200MM |
17 Kč | |
| 7 | 76311093280 CABLE TIE 280MM |
26 Kč | |
| 8 | 58511075510 FUSE-BOX COVER |
201 Kč | |
| 9 | 44611207200 FLASHER UNIT 97 |
762 Kč | |
| 10 | 50311060100 DC HORN L.E.B. 03 |
539 Kč | |
| 11 | 0021050003 WASHER DIN 9021 A - 5.3 |
17 Kč | |
| 12 | 0985050003 SELF LOCKING NUT DIN0985-M 5 |
21 Kč | |
| 13 | 78111034000 VOLTAGE REGULATOR |
4 403 Kč | |
| 14 | 0025060206 HH COLLAR SCREW M6X20 TX30 |
29 Kč | |
| 17 | 58111076000 CABLE SUPPORT KHS NR.150-47610 |
65 Kč | |
| 18 | 49111425200 BULB 12V 2,3W (W2X4,6D) |
23 Kč | |
| 19 | 49011435100 BULB 12V 5W (W2,1X9,5D) PHIL. |
68 Kč |
