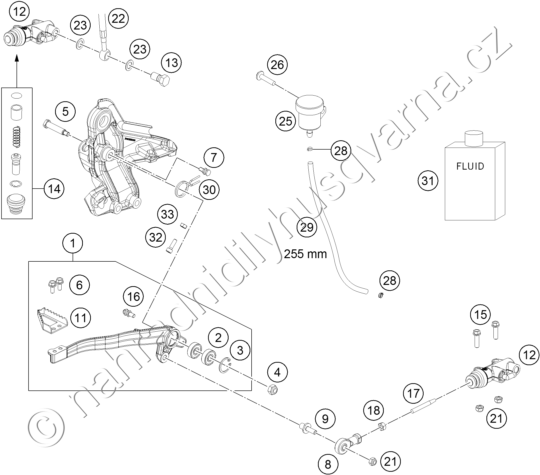

Díly pro REAR BRAKE CONTROL
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 76413150044 FOOT BRAKE LEVER CPL. |
2 957 Kč | |
| 2 | 0625006087 GROOVED BALL BEAR. 608 2RS C3 |
244 Kč | |
| 3 | 0472022100 CIRCLIP DIN0472-22X1 |
18 Kč | |
| 4 | 56509064100 SELF LOCKING NUT M6 10.9 |
21 Kč | |
| 5 | 76413050030 BOLT |
384 Kč | |
| 6 | 0025050126 HH COLLAR SCREW M5X12 TX30 |
36 Kč | |
| 7 | 76413050010 ARRESTOR |
241 Kč | |
| 8 | 54603069000 SWIVEL HEAD M6 FOOT BRAKE LEV. |
493 Kč | |
| 9 | 76413050020 THREADED BOLT |
310 Kč | |
| 11 | 76213051010 BRAKE LEVER PEDAL LARGE RALLY |
1 352 Kč | |
| 12 | 76213060000 FOOT BRAKE CYLINDER REAR |
1 998 Kč | |
| 13 | 54813020100 BANJO BOLT M10X1X19 BLACK |
169 Kč | |
| 14 | 54513150000 REPAIR KIT PISTON 13MM |
703 Kč | |
| 15 | 0025060256 HH COLLAR SCREW M6X25 TX30 |
29 Kč | |
| 16 | 76413050110 STOP PIN |
249 Kč | |
| 17 | 76203068000 PUSH ROD MAIN BRAKE CYLINDER |
568 Kč | |
| 18 | 0934060003 HEX NUT DIN 934 M6 |
17 Kč | |
| 21 | 0985060003 SELF LOCK. NUT DIN0985-M 6 |
20 Kč | |
| 22 | 76213070000 BRAKE HOSE REAR |
2 875 Kč | |
| 23 | 0603100141 SEALING RING DIN 7603 10X14X1 |
27 Kč | |
| 25 | 54513030044 BRAKE FLUID RESERVOIR \'89 |
272 Kč | |
| 26 | 0024060106 HH COLLAR SCREW M6X10 TX30 |
29 Kč | |
| 28 | 58007017000 YDNAC CLAMP 10101 (10,4MM) |
21 Kč | |
| 29 | 76213061000 HOSE FOR BRAKE FLUID RESERVOIR |
143 Kč | |
| 30 | 61234014000 RETURNSPRING 2MM |
84 Kč | |
| 31 | 00062030000 BRAKE FLUID DOT5.1 0,25L |
358 Kč | |
| 32 | 0025050256 HH COLLAR SCREW M5X25 ISA30 |
20 Kč | |
| 33 | 0934050003 HEXAGON NUT DIN0934-M 5 |
20 Kč |
