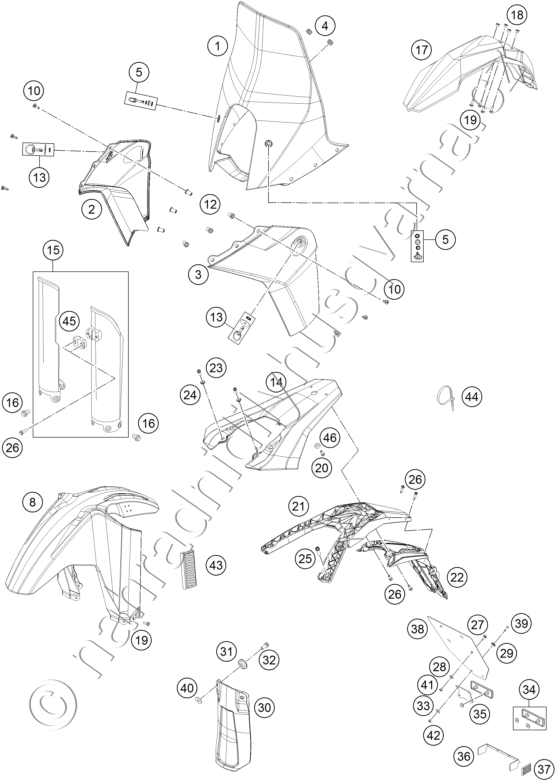

Díly pro MASK, FENDERS
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 76408008000 WINDSHIELD |
2 899 Kč | |
| 2 | 76408051000HAA SPOILER R/S BLUE |
4 937 Kč | |
| 3 | 76408050000HAA SPOILER L/S BLUE |
4 937 Kč | |
| 4 | 31008060000 RUBBER GROMMET D=8MM OPEN |
61 Kč | |
| 5 | 76408008030 QUICK RELEASE CONNECTOR CPL. |
324 Kč | |
| 8 | 76408010000HAA FRONT FENDER CPL. BLUE |
26 515 Kč | |
| 10 | 69008021060 SPECIAL SCREW M5X17 |
44 Kč | |
| 12 | 60008008050 BLIND PLUG NUT M5 WN16A |
63 Kč | |
| 13 | 76408008130 QUICK RELEASE CONNECTOR CPL. |
324 Kč | |
| 14 | 7640801300028A REAR PART WHITE |
5 543 Kč | |
| 15 | 5900109410028 FORK PROTECT. L/S+R/S WHITE 12 |
764 Kč | |
| 16 | 59001092050 SPECIAL SCREW M6X12,5 WS=8 |
29 Kč | |
| 17 | 7730821000028 FRONT FENDER WHITE |
764 Kč | |
| 18 | 54808020000 SPACER BUSHING 03 |
73 Kč | |
| 19 | 0024060206 HH COLLAR SCREW M6X20 TX30 |
29 Kč | |
| 20 | 0017060305 SPECIAL SCREW K60X30 WS=6 |
21 Kč | |
| 21 | 76408016000 NUMBER PLATE CARRIER |
2 609 Kč | |
| 22 | 76508016050 NUMBER PLATE LO. PART 08 |
339 Kč | |
| 23 | 0025060126 HH COLLAR SCREW M6X12 TX30 |
29 Kč | |
| 24 | 76508043050 COLLAR BUSHING |
53 Kč | |
| 25 | 0025080306 HH COLLAR SCREW M8X30 TX40 |
32 Kč | |
| 26 | 0017060205 SCREW FOR PLASTIC K60X20 SW6 |
29 Kč | |
| 27 | 0024060156 HH COLLAR SCREW M6X15 TX30 |
29 Kč | |
| 28 | 0125060003 WASHER DIN0125-A 6,4 |
13 Kč | |
| 29 | 40006006000 WASHER 6MM |
15 Kč | |
| 30 | 76506010100 SPLASH PROTECTOR |
156 Kč | |
| 31 | 72210079000 BUCKET |
69 Kč | |
| 32 | 0025060166 HH COLLAR SCREW M6X16 TX30 |
28 Kč | |
| 33 | 0125050003 WASHER DIN0125-A 5,3 |
17 Kč | |
| 34 | 58412080400 REAR REFLECTOR RED |
127 Kč | |
| 35 | 58412080050 BRACKET FOR REFLECTOR |
84 Kč | |
| 36 | 62512081000 BRACKET SIDE REFLECTOR 06 |
616 Kč | |
| 37 | 16512180100 SIDE REFLECTOR RED REAR |
134 Kč | |
| 38 | 60012081200 LICENSE PLATE MOUNING PLATE |
156 Kč | |
| 39 | 0966050163 OVAL HEAD SCREW DIN0966-M 5X16 |
17 Kč | |
| 40 | 0021060003 WASHER DIN9021-A 6,4 |
17 Kč | |
| 41 | 0985060003 SELF LOCK. NUT DIN0985-M 6 |
20 Kč | |
| 42 | 0985050003 SELF LOCKING NUT DIN0985-M 5 |
21 Kč | |
| 43 | 58412080300 REFLECTOR YELLOW \'\'CEV\'\' |
127 Kč | |
| 44 | 44011076140 CABLE TIE 140/2,5MM BLACK |
10 Kč | |
| 44 | 76311093200 CABLE TIE 200MM |
17 Kč | |
| 45 | 5900108510028 CLAMP F.SPEED.CABLE D=6MM 12 |
41 Kč | |
| 46 | 76408013010 SLEEVE |
79 Kč |
