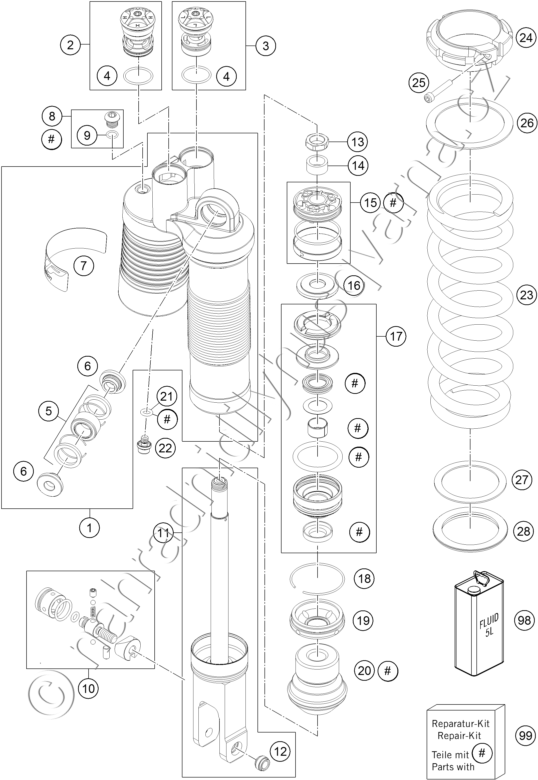

Díly pro SHOCK ABSORBER DISASSEMBLED
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 50181064S MONOSOCK UPPER PART CPL. |
24 203 Kč | |
| 2 | 50181009S DCC COMPR.DAMP.ADJ. HS LINK |
5 123 Kč | |
| 3 | 50181008S DCC COMPR.DAMP.ADJ. LS 10 |
3 701 Kč | |
| 4 | 50180524 O-RING VITON 23,52X1,78 |
41 Kč | |
| 5 | R12012 REP. KIT BEAR./SEAL UP. 07 |
1 352 Kč | |
| 6 | 46180010 BUSH KGW 10X24 |
191 Kč | |
| 7 | 52000128 STICKER WP WARNING |
61 Kč | |
| 8 | 40140014S PLUG ALU M10X1 CPL. |
419 Kč | |
| 9 | 50180100 O-RING 8X1,5 VITON |
41 Kč | |
| 10 | 46180522S1 TAP ADJ. REBOUND |
464 Kč | |
| 11 | 50180773SA2 MONOSHOCK BOTTOM PART CPL. |
5 123 Kč | |
| 12 | 46811205 ADAPTOR-BUSH M10x1,50, D=15 |
124 Kč | |
| 13 | 50180529 PISTON ROD NUT M16X1 |
523 Kč | |
| 14 | 50181114 SPACER BUSHING |
651 Kč | |
| 15 | 50180311S PISTON CPL. |
2 099 Kč | |
| 16 | 50180233 REBOUND DISC D=34, H=2 |
853 Kč | |
| 17 | 50180603S ADAPTOR CPL. D=50 H=28 08 |
2 069 Kč | |
| 18 | 50180126 CIRCLIP 53X1,75 |
31 Kč | |
| 19 | 50181061 COVER D50H8 |
892 Kč | |
| 20 | 50180480 BUMP RUBBER D58 D17 H59 SXS 05 |
1 120 Kč | |
| 21 | 46810893 O-RING NBR 5,28X1,78 |
29 Kč | |
| 22 | 36120151S PLUG SCREW M5X6 CPL. |
161 Kč | |
| 23 | 91310067S SPRING (64/58) 54-260 D11,25 |
3 382 Kč | |
| 24 | 50180678 SPRING RET. M57,5X1 |
1 304 Kč | |
| 25 | 50180327 AH SCREW M5X30 DIN912 |
33 Kč | |
| 26 | 50180746 INTERMEDIATE WASHER 64,1X80,5 |
324 Kč | |
| 27 | 50180410 INTERM.RING D=58 |
58 Kč | |
| 28 | 50180552 SPRING RETAINER CLOSED Ă 58 WP500 |
651 Kč | |
| 98 | 50180751S1 SHOCK ABSORBER FLUID 5 LT |
2 803 Kč | |
| 99 | R14055 REPAIR-KIT |
2 335 Kč |
