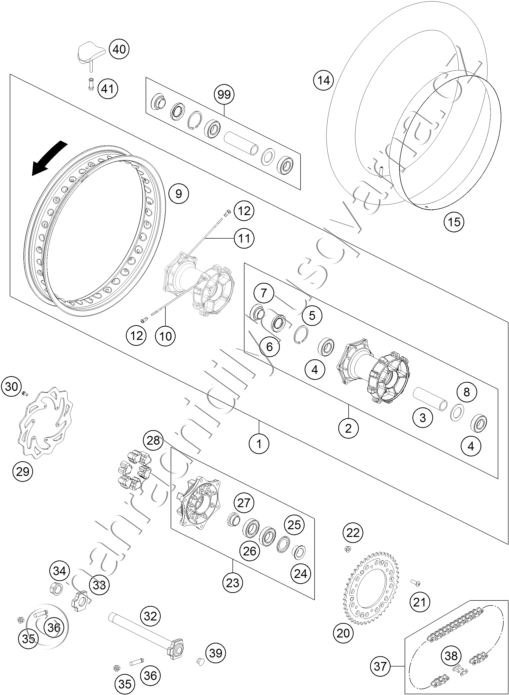

Díly pro REAR WHEEL
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 76410001044 REAR WHEEL RALLY CPL. |
15 687 Kč | |
| 2 | 7531001004491 REAR WHEEL HUB CPL. |
6 871 Kč | |
| 3 | 75310011000 BEARING SPACER TUBE L=106MM 07 |
422 Kč | |
| 4 | 0625062052 GR.BALL BEAR. 6205-2RSHC3HMTF7 |
442 Kč | |
| 5 | 0472052200 CIRCLIP DIN0472-52X2 |
29 Kč | |
| 6 | 0760305271 SHAFT SEAL RING 30X52X7 |
63 Kč | |
| 7 | 60110013000 SPACER BUSH. REAR WHEEL R/S 06 |
326 Kč | |
| 8 | 60010015000 SPACER RING 03 |
220 Kč | |
| 9 | 7621007000030 RIM 2.50X18\'\' |
6 818 Kč | |
| 10 | 76410071215 SPOKE M5X215 |
65 Kč | |
| 11 | 76410071205 SPOKE M5X205 |
65 Kč | |
| 12 | 60310072100 SPOKE NIPPLE QUADRAX M5 |
28 Kč | |
| 14 | 50310075100 HOSE 110/100C-18 |
526 Kč | |
| 15 | 50310073200 RIM BAND 18\'\' AND 19\'\' |
198 Kč | |
| 20 | 8131095104868 SPROCKET BLUE T-48 |
1 710 Kč | |
| 20 | 8131095104968 SPROCKET BLUE T-49 |
1 710 Kč | |
| 20 | 8131095105068 SPROCKET BLUE T-50 |
1 710 Kč | |
| 20 | 8131095105168 SPROCKET BLUE T-51 |
1 710 Kč | |
| 20 | 8131095105268 SPROCKET BLUE T-52 |
1 710 Kč | |
| 21 | 0019080266S COUNTER-SUNK SCREW ISA45 M8X26 |
33 Kč | |
| 22 | 54310086200 SELF LOCKING NUT M8 10.9 |
21 Kč | |
| 23 | 7501005004491 SPROCKET SUPPORT CPL. SILVER |
4 353 Kč | |
| 24 | 60110012000 SPACER BUSH. SPROCKET SUPP. 06 |
374 Kč | |
| 25 | 60110016000 NILOS RING 6006AV |
177 Kč | |
| 26 | 0625060060 BALL BEARING 6006 DDU2CG23S6NM |
389 Kč | |
| 27 | 60110014000 SPACER BUSH. SPR. SUPP. IN. 06 |
307 Kč | |
| 28 | 54610459000 RUBBER DAMPING BLOCK \'91 |
119 Kč | |
| 29 | 76510060100 REAR BRAKE DISK D=240X4MM |
3 831 Kč | |
| 30 | 59009062013 SPECIAL SCREW M6X13 WS=8 10.9 |
20 Kč | |
| 32 | 76210081044 WHEEL SPINDLE REAR CPL. |
4 575 Kč | |
| 33 | 60010084000 CHAIN TENSIONER R/S LC8 03 |
349 Kč | |
| 34 | 60010086000 COLLAR NUT WH. SPINDLE REAR 03 |
203 Kč | |
| 35 | 58414030000 HH COLLAR NUT M10X1,25 WS=13 |
36 Kč | |
| 36 | 50304040100 SCREW M10X1.25X50 WS10 |
65 Kč | |
| 37 | 78010167118 CHAIN DID 118 ROLLS |
2 577 Kč | |
| 38 | 78010166100 RIVETING LINK FOR 78010167118 |
199 Kč | |
| 39 | 50210086000 COVERING CAP SFL16 |
33 Kč | |
| 40 | 56410100100 RIM LOCK VM4 (2.50\'\') |
390 Kč | |
| 41 | 77110090050 NUT FOR WHEEL HOLDER |
33 Kč | |
| 99 | 75010015000 REAR WHEEL REP. KIT |
1 371 Kč |
