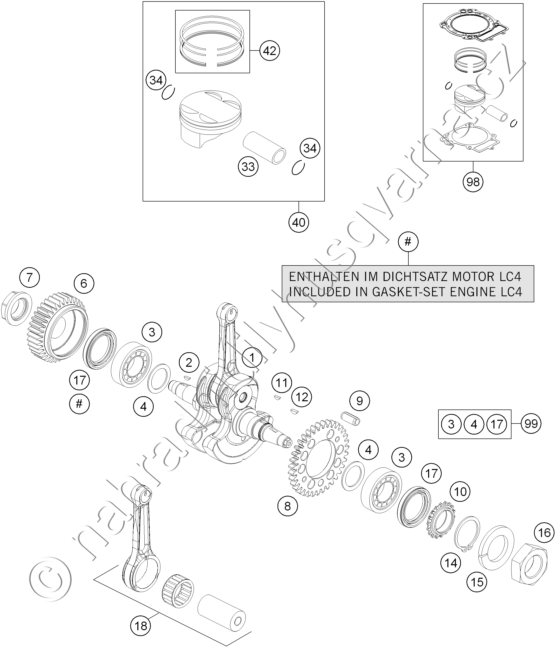

Díly pro CRANKSHAFT, PISTON
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 76030018100 CRANKSHAFT CPL. |
11 974 Kč | |
| 2 | 0888040050 WOODRUFF KEY DIN 6888 4X5X13 |
21 Kč | |
| 3 | 75030018150 CYL.ROLLER BEARING NJ207 ECPC4 |
1 528 Kč | |
| 4 | 56530081000 SHIM WASHER 36X48X0,10 |
28 Kč | |
| 4 | 56530081100 SHIM WASHER 36X48X0,15 |
33 Kč | |
| 4 | 56530081200 SHIM WASHER 36X48X0,20 STEEL |
39 Kč | |
| 4 | 56530081300 SHIM WASHER 36X48X0,30 |
26 Kč | |
| 6 | 75032000102 PRIMARY GEAR 36T. |
2 691 Kč | |
| 7 | 75030029100 NUT FOR PRIMARY GEAR |
178 Kč | |
| 8 | 75030055100 DRIVE WHEEL BALANCING SHAFT |
1 743 Kč | |
| 9 | 0749080300 TENSION PIN ISO13337 8X30 |
23 Kč | |
| 10 | 75036014100 TIMING PINION |
603 Kč | |
| 11 | 0888030050 WOODRUFF KEY DIN6888-3X5X13 |
20 Kč | |
| 12 | 6946005 WOODRUFF KEY 5X6,5 HARDED |
33 Kč | |
| 14 | 0471300151 CIRCLIP DIN0471-30X1,5 NIRO |
151 Kč | |
| 15 | 58132072000 LOCK WASHER VSK 18 |
42 Kč | |
| 16 | 0936181505 HEXAGON NUT DIN0936-M18X1,5 R. |
102 Kč | |
| 17 | 0760355070 SHAFT SEAL R.35X50X7B VITON |
167 Kč | |
| 18 | 75330015144 CON-ROD REPAIR KIT |
7 890 Kč | |
| 33 | 61230033000 PISTON PIN D=20 08 |
1 195 Kč | |
| 34 | 77630074000 CIRCLIP |
340 Kč | |
| 40 | 75330007100 I PISTON I CPL. D=102 |
7 258 Kč | |
| 40 | 75330007100 II PISTON II CPL. D=102 |
7 258 Kč | |
| 42 | 75330031144 PISTON RING KIT |
1 475 Kč | |
| 98 | 00050000224 PISTON KIT GR. I 690 DUKE12-14 |
7 146 Kč | |
| 98 | 00050000225 PISTON KIT GR. II 690DUKE12-14 |
7 146 Kč | |
| 99 | 00050002305 CRANKSHAFT REP. KIT 690 |
3 172 Kč |
