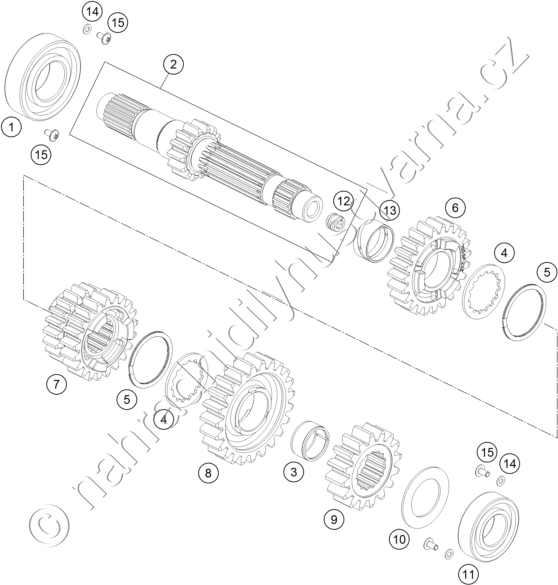

Díly pro TRANSMISSION I - MAIN SHAFT
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 06252858161 BALL BEARING 58/28 C4 N |
408 Kč | |
| 2 | 76233001000 MAIN SHAFT |
9 618 Kč | |
| 3 | 0405222613 NEEDLE BEAR. K 22X26X13 TN |
132 Kč | |
| 4 | 56533016300 STOP DISK 22,7 X 32 X 1,5 |
102 Kč | |
| 5 | 0471025000 CIRCLIP D25 |
132 Kč | |
| 6 | 75033105000 IDLER GEAR 5.G. |
1 485 Kč | |
| 7 | 75033003020 3/4TH GEAR MAINSHAFT |
2 904 Kč | |
| 8 | 75033006000 IDLER 6. GEAR 07 |
1 482 Kč | |
| 9 | 75033002000 SOLID GEAR 2.G. 07 |
1 240 Kč | |
| 10 | 59033080000 SHIM 20X32X1 |
41 Kč | |
| 11 | 0625060044 BALL BEARING 6004 DDUN C4 |
228 Kč | |
| 12 | 77333001160 GUIDE BUSHING |
108 Kč | |
| 13 | 76233022200 BUSHING 25X28X13 |
2 375 Kč | |
| 14 | 0021050003 WASHER DIN 9021 A - 5.3 |
17 Kč | |
| 15 | 073800501002 PAN HEAD SCREW M5X10 TX25 |
17 Kč |
