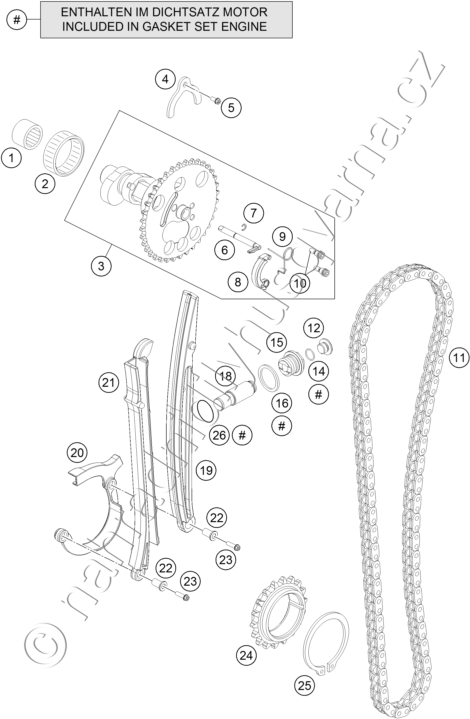

Díly pro TIMING DRIVE
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 0618182414 NEEDLE SLEEVE HK1814RS18/24/14 |
156 Kč | |
| 2 | 0618404712 NEEDLE SLEEVE HK4012B40X47X12 |
201 Kč | |
| 3 | 76536010144 CAMSHAFT CPL. |
4 494 Kč | |
| 4 | 75036010050 CAMSHAFT HOLDER 07 |
98 Kč | |
| 5 | 0025060126 HH COLLAR SCREW M6X12 TX30 |
29 Kč | |
| 6 | 75036016000 AUTO DECOMPRESSION 07 |
347 Kč | |
| 7 | 75036016050 HALF MOON RING H6-BLS 07 |
265 Kč | |
| 8 | 75036015000 AUTO DECO WEIGHT 07 |
347 Kč | |
| 9 | 75036017000 SPRING FOR AUTO DECOMPR. 07 |
526 Kč | |
| 10 | 75036019000 DECO SCREW 07 |
191 Kč | |
| 11 | 76036013000 TIMING CHAIN |
885 Kč | |
| 12 | 76636080000 PLUG |
222 Kč | |
| 14 | 0770010010 O-RING 10.00X1.00 NBR70 |
18 Kč | |
| 15 | 75036008000 SCREW PLUG CHAIN ADJ. 07 |
280 Kč | |
| 16 | 0603202702 CU SEAL-RING 20X27X1 |
73 Kč | |
| 18 | 77036003000 CHAIN ADJUSTER HYD. 05 |
1 301 Kč | |
| 19 | 75036002000 TENSIONER RAIL 07 |
211 Kč | |
| 20 | 75036018000 SECURING GUIDE 07 |
53 Kč | |
| 21 | 75036001000 GUIDE RAIL 07 |
158 Kč | |
| 22 | 75036018050 SUPPORTING SLEEVE 07 |
60 Kč | |
| 23 | 0025060306S HH COLLAR SCREW M6X30 TX30 |
29 Kč | |
| 24 | 75036014100 TIMING PINION |
603 Kč | |
| 25 | 0471300151 CIRCLIP DIN0471-30X1,5 NIRO |
151 Kč | |
| 26 | 0770180020 O-RING 18.00X2.00 NBR70 |
21 Kč |
