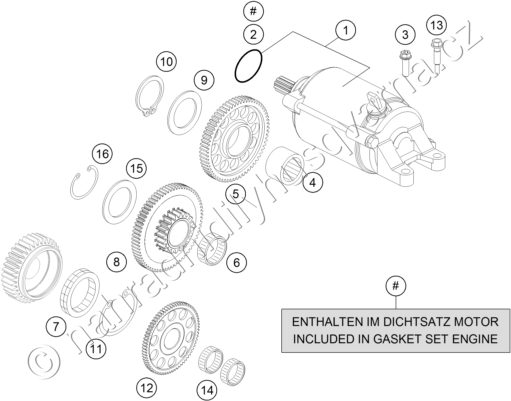

Díly pro ELECTRIC STARTER
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 75040001000 E-STARTER ENGINE CPL. 07 |
10 228 Kč | |
| 2 | 0770250030 O-RING 25,00X3,00 NBR 70 |
17 Kč | |
| 3 | 0025060206 HH COLLAR SCREW M6X20 TX30 |
29 Kč | |
| 4 | 0618172312 NEEDLE SLEEVE HK 1712 17X23X12 |
127 Kč | |
| 5 | 75040022100 STARTER INTERMEDIATE GEAR |
817 Kč | |
| 6 | 0405172117 NEEDLE BEARING K17X21X17 |
146 Kč | |
| 7 | 75040026000 FREE WHEEL |
1 944 Kč | |
| 8 | 75040015100 TORQUE LIMITER |
2 765 Kč | |
| 9 | 54633090000 STOP DISK 17,2X25X1 |
49 Kč | |
| 10 | 0471170010 CIRCLIP DIN0471-17X1 |
17 Kč | |
| 11 | 0472056200 CIRCLIP DIN0472 J56 |
49 Kč | |
| 12 | 75040020100 FREE WHEEL GEAR |
1 638 Kč | |
| 13 | 76240030000 HH COLLAR SCREW M 6X30 |
1 389 Kč | |
| 14 | 0405263013 NEEDLE BEAR. K 26X30X13 |
161 Kč | |
| 15 | 75040015007 STOP DISK 17,2X22X1 |
102 Kč | |
| 16 | 0471170100 CIRCLIP DIN 0471-17X1 |
39 Kč |
