Díly pro LUBRICATING SYSTEM

Číslo dílu
na schématu
Kód dílu
Název dílu
Cena za kus
vč. DPH
Doporučený
počet
1 0799060000
TAB WASHER DIN6799-RS 6,0
17 Kč
2 58038007755
STOP DISK 8,1 X 15 X 0,5
21 Kč
3 75038001020
OIL PUMP GEAR 20-T
76 Kč
4 07984050100
AH SCREW DIN7984 M5X10 A2
21 Kč
5 75038002000
OIL PUMP SHAFT 07
228 Kč
6 0402251980
NEEDLEROL.DIN5402 NRA 2,5X19,8
20 Kč
7 0402251180
NEEDLE ROLLER DIN5402 2,5X11,8
19 Kč
8 77038011100
OIL PUMP ROTOR COMPL. 15MM
829 Kč
9 59038011110
OIL PUMP ROTOR COMPL. 10MM
89 Kč
10 0025050166
HH COLLAR SCREW M5X16 TX30
20 Kč
11 75038041200
OIL FILTER COVER
135 Kč
12 07700390261
O-RING 39,34X2,62
18 Kč
13 76038041000
OILFILTER COVER
522 Kč
14 76538034000
OIL PIPE
1 516 Kč
15 75038046100
OIL FILTER SHORT
129 Kč
16 58038005100
OIL FILTER LONG
195 Kč
17 58038028000
VALVE PISTON D=10MM
126 Kč
18 58538023000
OIL PRES.SPRING 5 BAR RED 2001
185 Kč
19 58038022000
CU-SEAL RING DIN7603-12X18X1,5
28 Kč
20 0908120153
THREADED PLUG DIN 908 M12X1.5
87 Kč
21 07701250151
O-RING 12,5X1,5 VITON V75
76 Kč
22 59038016100
OIL SCREEN
278 Kč
23 0770020170
O-RING 17,17X1,78 GLO
18 Kč
24 59038017100
PLUG M20X1,5 WS=13
252 Kč
25 75038003000
OIL PUMP COVER 07
337 Kč
26 75038004000
OIL PUMP SHAFT 07
228 Kč
27 75032050001
OIL PUMP DRIVE WHEEL 07
57 Kč
28 76038003000
OIL PUMP COVER
542 Kč
29 0019050163S
INT. TORX FLAT HEAD M5X16 8.8
26 Kč
30 0025060166S
HH COLLAR SCREW M6X16 TX30 SL
29 Kč
31 61238091000
OIL PRESSURE SWITCH \'\'BITRON\'\'
389 Kč
32 0603100141
SEALING RING DIN 7603 10X14X1
27 Kč
33 58605083014
SCREW M5X14 TORX 25 07
34 Kč
34 49007439000
CLAMP RSGU 15/12
69 Kč
35 69008021080
CLIP NUT M5
47 Kč
99 75038046110
OILFILTER SERVICEKIT 690 12-14
1 173 Kč

Další schémata

BALANCER SHAFT BALANCER SHAFT CLUTCH CLUTCH CLUTCH COVER CLUTCH COVER COOLING SYSTEM COOLING SYSTEM CRANKSHAFT, PISTON CRANKSHAFT, PISTON CYLINDER CYLINDER CYLINDER HEAD CYLINDER HEAD ELECTRIC STARTER ELECTRIC STARTER ENGINE CASE ENGINE CASE IGNITION SYSTEM IGNITION SYSTEM LUBRICATING SYSTEM LUBRICATING SYSTEM SHIFTING MECHANISM SHIFTING MECHANISM THROTTLE BODY THROTTLE BODY TIMING DRIVE TIMING DRIVE TRANSMISSION I - MAIN SHAFT TRANSMISSION I - MAIN SHAFT TRANSMISSION II - COUNTERSHAFT TRANSMISSION II - COUNTERSHAFT VALVE DRIVE VALVE DRIVE WATER PUMP WATER PUMP

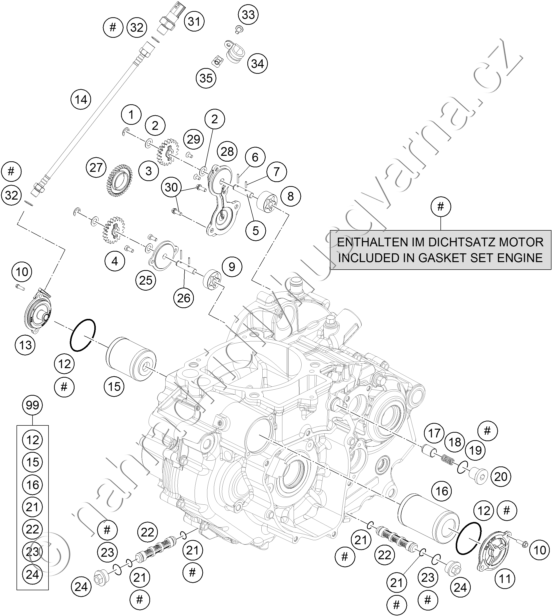

LUBRICATING SYSTEM

Zvětšit schéma LUBRICATING SYSTEM
LUBRICATING SYSTEM
