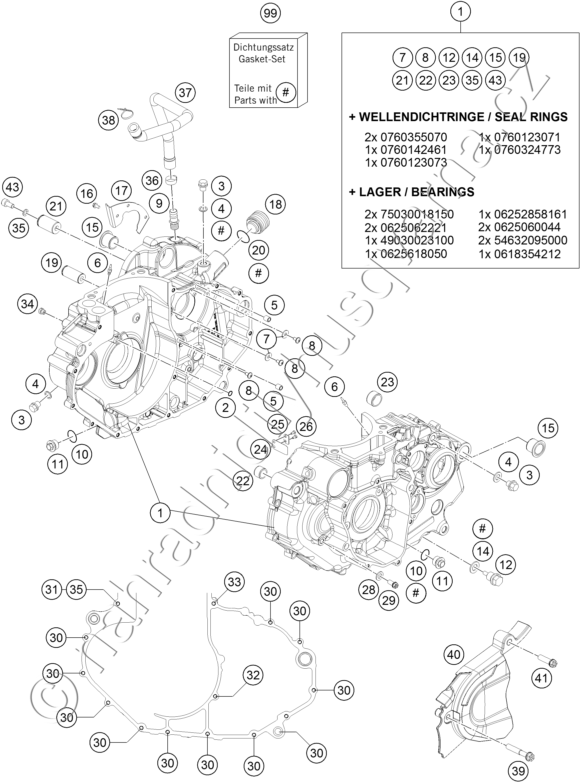

Díly pro ENGINE CASE
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 7603000043324 ENGINE CASE CPL. |
27 041 Kč | |
| 2 | 0770060018 O-RING 6,00X1,78 |
18 Kč | |
| 3 | 0910100003 PLUG DIN0910-M 10X1 |
87 Kč | |
| 4 | 0603100141 SEALING RING DIN 7603 10X14X1 |
27 Kč | |
| 5 | 59030023000 DOWEL SLEEVE 6X8X11.5 |
82 Kč | |
| 6 | 60030064050 OIL JET 50 M6X0,75 WS8 05 |
212 Kč | |
| 7 | 0021050003 WASHER DIN 9021 A - 5.3 |
17 Kč | |
| 8 | 073800501002 PAN HEAD SCREW M5X10 TX25 |
17 Kč | |
| 9 | 60030022000 VENTILATION CONNECTOR M16X1,5 |
130 Kč | |
| 10 | 0770020170 O-RING 17,17X1,78 GLO |
18 Kč | |
| 11 | 59038017100 PLUG M20X1,5 WS=13 |
252 Kč | |
| 12 | 58030021100 OILDRAIN PLUG WITH MAGNET |
196 Kč | |
| 14 | 58038022000 CU-SEAL RING DIN7603-12X18X1,5 |
28 Kč | |
| 15 | 75030010000 CASE BUSH |
150 Kč | |
| 16 | 07984050100 AH SCREW DIN7984 M5X10 A2 |
21 Kč | |
| 17 | 75030042000 COVER |
449 Kč | |
| 18 | 75038048100 LOCK PIECE |
167 Kč | |
| 19 | 54633018400 BUSHING PIN |
323 Kč | |
| 20 | 0770180020 O-RING 18.00X2.00 NBR70 |
21 Kč | |
| 21 | 59040028000 BUSHING PIN |
191 Kč | |
| 22 | 51030026100 DOWEL 17 X 13 X 12 |
89 Kč | |
| 23 | 54830027000 DOWEL 21X12 03 |
103 Kč | |
| 24 | 75030003051 MEMBRANE 07 |
21 Kč | |
| 25 | 75030003050 STOP SHEET MEMBRANE 07 |
28 Kč | |
| 26 | 0458030080 CYLIND.SCREW M3X8 ISO 14580 SS |
37 Kč | |
| 28 | 0603082121 SEAL RING CU DIN7603- 8X12X1 |
18 Kč | |
| 29 | 0025080166 HH COLLAR SCREW M8X16 TX40 |
33 Kč | |
| 30 | 0025060306 HH COLLAR SCREW M6X30 TX30 |
29 Kč | |
| 31 | 0025060256 HH COLLAR SCREW M6X25 TX30 |
29 Kč | |
| 32 | 0025060706 HH COLLAR SCREW M6X70 TX30 |
29 Kč | |
| 33 | 0025060806 HH COLLAR SCREW M6X80 TX30 |
29 Kč | |
| 34 | 75030058000 JET 125 |
57 Kč | |
| 35 | 0603061001 CU-SEAL RING DIN7603-6X10X1 |
20 Kč | |
| 36 | 00049220121 CLAMP STD DN22 |
36 Kč | |
| 37 | 76530089100 BREATHER HOSE |
470 Kč | |
| 38 | 44011076200 CABLE TIE 200/3,6MM BLACK |
10 Kč | |
| 39 | 0025060406 HH COLLAR SCREW M6X40 TX30 |
29 Kč | |
| 40 | 76530060044 CHAIN GUARD CPL. 08 |
231 Kč | |
| 41 | 0025080356 HH COLLAR SCREW M8X35 TX40 |
33 Kč | |
| 43 | 0912060123 AH SCREW DIN0912-M 6X12 |
17 Kč | |
| 99 | 75030099000 GASKET SET LC4 2007 |
3 917 Kč |
